1. Product Overview
It provides precise testing of parameters including water tightness, pressure resistance, flow capacity, and functional stability.
This equipment adopts intelligent PLC control with a touch screen interface for simple operation, high accuracy, and reliable data acquisition. It is widely applied in plumbing product manufacturers, inspection agencies, and R&D centers.
2. Main Features
- Designed for comprehensive performance evaluation of floor drains and drainage fittings.
- Simulates real drainage conditions with adjustable water pressure and flow.
- Equipped with multi-station test system — up to three independent test positions.
- Automatic monitoring and data recording through PLC and touch screen control.
- Stable operation with aluminum profile frame and corrosion-resistant materials.
- Complies with ISO, GB, and relevant international plumbing product standards.
3. Technical Parameters
| No. | Item | Specification / Requirement |
|---|---|---|
| 1 | Working voltage | Water pump, heating, refrigeration: three-phase AC380V; others: single-phase AC220V |
| 2 | Working air pressure | External connection 0.3MPa–0.6MPa |
| 3 | Working pressure | Adjustable from 0.02–1.0MPa |
| 4 | Test product range | Floor drain and drainage fittings |
| 5 | Test medium | Normal temperature water |
| 6 | Pump capacity | No less than 60 L/min at 0.2MPa |
| 7 | Appearance material | Aluminum profile frame + aluminum-plastic sealing plate |
| 8 | Electric power | Up to 5 KW |
| 9 | Test station | Three test stations |
| 10 | Upper monitor | PLC + touch screen |
| 11 | Machine size | 2200 × 1200 × 1800 mm (L×W×H) |
4. Working Principle
The testing machine applies water pressure through a circulation system to simulate real-life drainage conditions. The pump system delivers water to the test samples, while the PLC controller adjusts and maintains the target pressure and flow rate.
Sensors record pressure, flow, and leakage performance in real time. The test results can be displayed graphically on the touch screen and stored for further analysis or printing.
5. Control System
The equipment adopts an intelligent PLC control system with a high-resolution touch screen for easy parameter setting and data monitoring.
- Automatic pressure control and safety protection
- Multi-channel test data acquisition
- Real-time graphical display of test curves
- Built-in calibration and fault alarm functions
6. Applications
The Comprehensive Performance Testing Machine is suitable for various plumbing and sanitary product evaluations:
- Floor drains with different outlet types
- Trap seals and anti-odor drainage components
- Pipe joints, connectors, and fittings
- Drainage system leakproof and pressure resistance tests
It ensures the tested products meet the required standards for safety, water tightness, and durability.
7. Advantages
- Supports multiple test modes (pressure, leakage, flow, endurance)
- Modular design for easy maintenance and calibration
- Durable construction with aluminum profile frame
- Energy-efficient and stable long-term operation
- Comprehensive data management and report export function

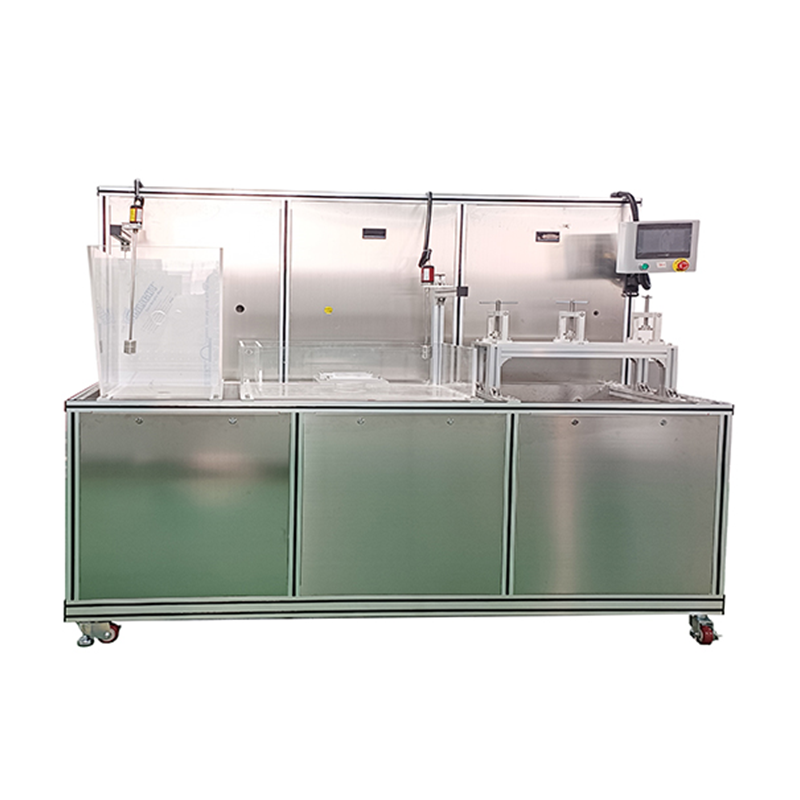

8. Machine Structure
The entire system is built on a sturdy aluminum alloy frame with anti-corrosion sealing panels. The internal components include a high-capacity pump, stainless steel pipes, control valves, and a water tank.
Each test station can independently perform pressure or leakage testing, ensuring high efficiency and repeatability.
Conclusion
The Comprehensive Performance Testing Machine for Floor Drain and Drainage Accessories is an essential tool for ensuring the reliability and quality of drainage systems.
With advanced PLC control, high-pressure capability, and multi-station operation, it provides a complete solution for laboratory and production testing needs.
Whether for product R&D or quality assurance, this testing system helps manufacturers deliver consistent, high-performance drainage products that comply with international standards.
