As kick scooters become increasingly popular for recreation, sports, transportation, and children’s outdoor activities, manufacturers need to ensure that their products can withstand repeated loads and demanding riding conditions. Static strength testing alone cannot fully evaluate how a scooter performs during continuous use.
A Kick Scooter Dynamic Strength Testing Machine provides a practical solution by simulating repeated riding conditions and applying controlled loads to the scooter. Through dynamic testing, manufacturers can evaluate structural strength, durability, and long-term performance before products reach the market.
What Is Kick Scooter Dynamic Strength Testing?
Dynamic strength testing evaluates how a kick scooter performs when subjected to repeated mechanical loads rather than a single static force.
During a typical test, the scooter is mounted onto a rotating drum and loaded with a specified weight. Steel obstacles installed on the drum create repeated impacts and vibration as the drum rotates. This process simulates demanding conditions that a scooter may experience during actual riding.
Unlike a simple static load test, a Scooter Dynamic Tester can reveal problems such as:
- Structural deformation
- Frame or deck cracking
- Steering component damage
- Wheel or connection failure
- Loose components
- Excessive wear
- Reduced structural stability
These results help manufacturers improve product design and production quality.
Why Is Scooter Durability Testing Important?
A scooter may perform well when subjected to a single load but still fail after thousands of repeated loading cycles. Dynamic durability testing therefore plays an important role in evaluating the service life of the product.
A Scooter Durability Tester can simulate repeated riding conditions and help determine whether the scooter maintains its structural integrity over time.
For manufacturers, this testing can provide several benefits:
1. Evaluate Structural Strength
Repeated loading can place significant stress on the deck, frame, steering column, wheels, and other components. Dynamic testing helps identify weak points before mass production.
2. Improve Product Reliability
Test results allow engineers to identify potential failure areas and optimize materials, joints, welding structures, and component designs.
3. Support Safety Verification
A scooter used by children or adults needs to maintain stable performance during repeated use. Dynamic strength testing provides important data for product safety evaluation.
4. Reduce Product Failure Risks
Identifying structural problems during laboratory testing is generally more efficient than discovering failures after products have entered the market.
How Does a Kick Scooter Dynamic Strength Testing Machine Work?

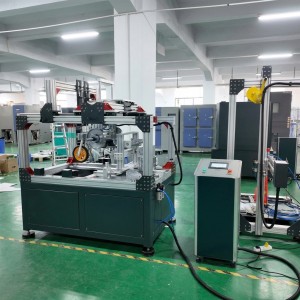

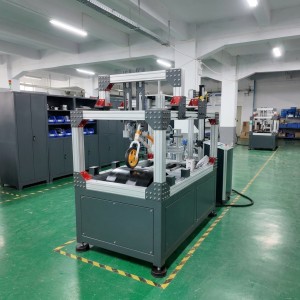

The Kick Scooter Dynamic Strength Testing Machine uses a rotating drum to reproduce repeated riding conditions.
The scooter is securely installed using an appropriate fixture, and a specified load is applied to simulate the rider’s weight. As the drum rotates, the scooter repeatedly passes over steel trapezoidal obstacles.
The testing process can be controlled through a PLC touchscreen system. Operators can set the required test parameters, monitor the test in real time, and record accumulated cycles and operating time.
The machine supports a test drum diameter of 700 mm ± 10 mm and a drum speed of 0.5 m/s ± 5%. The test load can be adjusted from 20 to 100 kg, allowing different test conditions to be configured.
Key Features of the Dynamic Scooter Tester
Modern Scooter Strength Testing Machines need to provide more than mechanical movement. Accurate control, automatic monitoring, and safety functions are also important for laboratory testing.
The equipment features a PLC and touchscreen controller that allows operators to monitor:
- Test time
- Accumulated test cycles
- Test load
- Test speed
- Test status
- Abnormal conditions
The system can also automatically stop the test when the preset number of cycles is reached.
If excessive deformation or component damage occurs, the machine can stop automatically and provide an alarm, helping protect both the test specimen and equipment.
Four-Station Testing for Higher Efficiency
For laboratories and manufacturers that need to test multiple scooters, testing efficiency is particularly important.
This machine is designed with four test stations according to the supplied requirements for EN 13843:2009, EN 13613:2009, and EN 14619:2019. Multiple stations allow laboratories to organize testing more efficiently and improve testing capacity.
The machine can also use different fixtures, including 90° and 70° fixtures, according to the relevant testing configuration.
Power-Off Memory and Automatic Fault Diagnosis
Long-duration durability tests may run for many hours. Unexpected power interruptions can therefore cause significant problems if test data and settings are lost.
The testing machine provides power-off memory and breakpoint detection functions. After an unexpected power interruption, the system can save the relevant test information and resume operation according to the previously configured parameters.
The equipment also includes an automatic fault diagnosis system. When a fault occurs, the corresponding fault code can be displayed, making troubleshooting easier for operators.
Applicable Scooter Testing Standards
The machine is designed to meet or exceed the relevant requirements specified by:
- EN 13843:2009
- EN 13613:2009
- EN 14619:2019
These standards provide important requirements and test methods related to wheeled sports equipment and kick scooters. For commercial projects, manufacturers should always confirm the exact edition and applicable clauses required for their target market and product category.
Who Needs a Scooter Dynamic Strength Tester?
A Scooter Dynamic Strength Testing Machine is particularly useful for:
- Kick scooter manufacturers
- Children’s scooter manufacturers
- Sports equipment manufacturers
- Outdoor equipment manufacturers
- Scooter R&D departments
- Quality control laboratories
- Testing and certification laboratories
- Product safety laboratories
- Universities and research institutes
It can be used during new product development, sample verification, production quality control, supplier evaluation, and third-party testing.
Conclusion
Dynamic testing is an essential part of evaluating the long-term performance of kick scooters. A product must not only withstand a single load but also maintain its structural integrity after repeated impacts, vibration, and loading.
The Kick Scooter Dynamic Strength Testing Machine combines a controlled rotating drum, adjustable loading system, standardized obstacles, four testing stations, and PLC touchscreen control to provide an efficient solution for scooter strength and durability evaluation.
For manufacturers targeting international markets, integrating Scooter Dynamic Testing, durability testing, and standards-based evaluation into the product development process can help identify structural weaknesses early and improve overall product reliability and safety.
