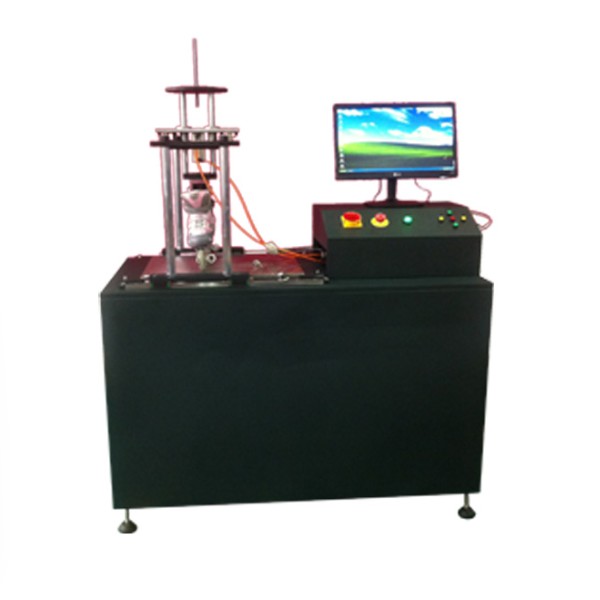

Roller Skate Anti-Slip Tester: Friction Coefficient Test Machine for Skate Wheels

Introduction: Why Anti-Slip Testing Matters for Skate Wheels

The grip (anti-slip performance) of roller skate wheels directly impacts rider safety, control, and maneuverability. Wheels that are too slippery cause loss of control on smooth surfaces; wheels with too much friction reduce speed and increase fatigue. The Roller Skate Anti-Slip Tester is a specialized instrument designed to precisely measure the friction coefficient of skate wheels under controlled conditions. By simulating the contact between wheels and standard flooring surfaces, this machine provides objective data for quality control, material selection, and product certification.

Technical Specifications of the Roller Skate Anti-Slip Tester

The Roller Skate Anti-Slip Tester is engineered to meet rigorous testing standards. Key parameters include:

• Test Surface: Stainless steel plate with surface roughness Ra = 1.5μm – 2.0μm (simulating smooth indoor flooring).
• Force Measurement: Pulling force range 0–500N with precision 0.01N for accurate friction detection.
• Pulling Speed: Horizontally adjustable from 0–200 mm/min (stepless regulation) to test at different sliding velocities.
• Load Weights: Includes 10kg weights (6 pcs) and 5.1kg weights (4 pcs) to apply normal force up to 80.4kg total, simulating different rider weights.

How the Test Works

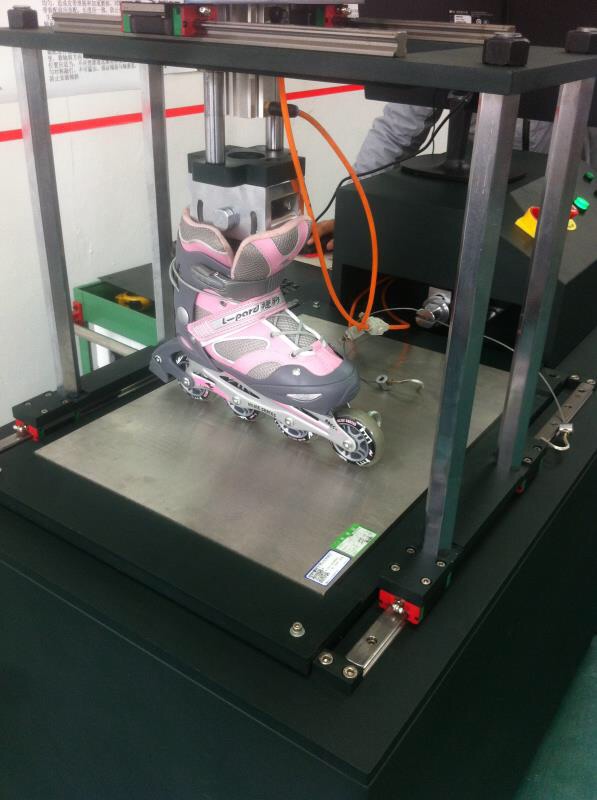

Using the Roller Skate Anti-Slip Tester, the operator mounts one or more skate wheels onto a carriage. The wheels are pressed against the stainless steel plate using calibrated weights (simulating the skater’s weight). A pulling mechanism then drags the wheel assembly horizontally at a set speed while a load cell measures the required pulling force. The friction coefficient is calculated as: μ = (measured pulling force) / (total normal force). The test can be repeated at different speeds and loads to map the wheel’s grip characteristics across real-world conditions.

Applications and Industry Relevance

Manufacturers of inline skates, quad skates, and skateboards use the Roller Skate Anti-Slip Tester to:

• Select Optimal Wheel Compounds: Compare urethane formulations for desired grip vs. durability.
• Ensure Consistency: Validate that production wheels meet specified friction coefficient ranges.
• Comply with Standards: Meet industry requirements (e.g., ASTM F2123 for roller skates).
• Improve Safety: Prevent wheel slip accidents on smooth floors (e.g., rinks, gymnasiums).

Key Features of a Professional Tester

• High-Precision Load Cell: 0.01N resolution ensures reliable μ calculation.
• Adjustable Speed Control: Simulates slow cruising to fast sprinting.
• Interchangeable Surfaces: Optional wood, concrete, or coated plates for different floor types.
• Computer Data Logging: Automatic recording of force curves and μ values for analysis.
• Safety Enclosure: Protects operator during high-speed tests.

Conclusion: The Foundation of Skate Wheel Quality

The Roller Skate Anti-Slip Tester provides essential data for manufacturers committed to delivering safe, high-performance wheels. By quantifying friction coefficient under controlled conditions, this machine helps engineers fine-tune wheel formulations, QC teams maintain batch consistency, and brands build trust with riders. Invest in a Roller Skate Anti-Slip Tester to ensure your wheels grip where it matters most.
