Eliminating the Jam: How a Sliding Core Tester Ensures Flawless Lead Feeding

For users of mechanical pencils, few frustrations compare to a lead that jams, breaks, or feeds inconsistently. This common failure point isn’t just an annoyance—it undermines the tool’s core promise of smooth, reliable writing and can permanently damage a brand’s reputation. The culprit often lies in the subtle interplay between the lead core and the pencil’s internal mechanism (the clutch, sleeve, or barrel). But how can manufacturers move beyond vague user complaints to precisely diagnose and solve this issue? The Sliding Core Tester provides the definitive, data-driven answer. This specialized instrument, as its name describes, is engineered to objectively measure and analyze the lead sliding friction and movement behavior within a simulated or actual pencil barrel, transforming a subjective feel into quantifiable, actionable engineering data.

What is a Sliding Core Tester?

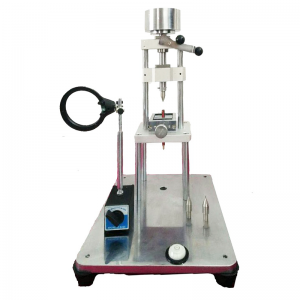

A Sliding Core Tester is a precision laboratory instrument designed specifically to evaluate the feeding performance and frictional characteristics of a pencil lead within a guiding channel or barrel. Its primary function is not to test the lead’s hardness or strength, but its sliding dynamics. It simulates the act of the lead being advanced through the pencil’s tip by clamping a section of the pencil mechanism or a standardized test sleeve, then precisely pushing or pulling a length of lead through it under controlled conditions. By measuring the force required to initiate and maintain this movement, it quantifies the friction, identifies stick-slip behavior (the cause of jamming), and validates the smoothness of the entire pencil lead feed mechanism.

Core Testing Principle: From Subjective Feel to Objective Friction Curve

The tester’s accuracy lies in its ability to replicate and measure the physics of lead movement:

• Simulated Interface: The pencil’s tip assembly, clutch, or a calibrated test sleeve is securely mounted to represent the internal guiding surface.
• Precision Actuation: A servo motor or linear actuator moves the lead sample through the guide at a constant, slow speed, mimicking user-activated advancement.
• Dual-Force Measurement: A sensitive load cell measures two key forces: the higher static friction (force to start movement) and the lower kinetic friction (force to keep it moving). A large gap between these indicates problematic stick-slip behavior, the primary cause of jamming and breakage.
• Data Visualization: The output is not just a number, but a complete force vs. displacement curve. This curve visually reveals roughness, bumps, or inconsistent friction along the lead’s travel path.

The Critical Role in Automatic Pencil Quality Control

For manufacturers of mechanical and automatic pencils, integrating sliding core testing into automatic pencil quality control is a strategic necessity to prevent the most common field failure.

• Prevent the #1 User Complaint: Proactively identifying high-friction leads or poorly-machined guides in the lab prevents jams from ever reaching the consumer.
• Validate Lead-to-Mechanism Compatibility: Test different lead diameters (0.3mm, 0.5mm, 0.7mm) and formulations (graphite, polymer) with the same pencil mechanism to ensure universal smooth operation.
• Optimize Internal Component Design: Provide engineers with hard data to compare materials (e.g., brass vs. plastic clutch), surface finishes, and tolerances for the smoothest possible feed.
• Establish a Quantitative Performance Standard: Replace subjective “hand-feel” tests with a pass/fail threshold based on maximum allowable friction force, ensuring batch-to-batch consistency.

Operational Workflow: Diagnosing Feed Issues Step-by-Step

Conducting a reliable analysis with a Sliding Core Tester follows a standardized protocol:

1. Sample Preparation: A representative lead sample and the corresponding pencil tip/feed mechanism are prepared and cleaned to remove any contaminants.
2. Fixture & Calibration: The guide mechanism is clamped into the tester. The system is calibrated to zero force.
3. Test Execution: The machine automatically drives a defined length of lead through the guide while continuously recording the resistive force.
4. Curve Analysis: The operator reviews the force-displacement curve. A smooth, low, and consistent force line indicates excellent performance. Peaks, valleys, or high initial force spikes indicate problems.
5. Pass/Fail Decision & Root Cause Analysis: Based on pre-set friction limits, the lead/mechanism is accepted or rejected. The curve shape helps pinpoint the cause: contaminated lead coating, burr on the metal sleeve, or out-of-spec lead diameter.

Beyond Problem-Solving: Driving Innovation in Writing Instruments

This tester’s value extends beyond catching defects; it is a powerful tool for writing instrument performance innovation.

• Developing Advanced Lead Formulations: R&D teams can use it to test and refine special lubricating coatings or polymer matrices that significantly reduce sliding friction, leading to premium “ultra-smooth” product lines.
• Evaluating Sustainable Materials: Objectively assess the performance of new, eco-friendly alternative materials for internal components compared to traditional plastics or metals.
• Supporting Marketing Claims with Data: Provide tangible proof to back up claims of “smooth advance” or “jam-resistant mechanism,” building stronger brand credibility with professional and academic users.

Conclusion: The Foundation of a Trustworthy Writing Experience

In the end, the success of a mechanical pencil hinges on an invisible, often overlooked characteristic: the flawless movement of a tiny core inside a sleeve. The Sliding Core Tester is the essential instrument that makes this critical characteristic visible, measurable, and controllable. By providing objective data on the interface between lead and mechanism, it empowers manufacturers to eliminate the jams and breaks that destroy user trust. Investing in this precise level of analysis is an investment in delivering a frustration-free writing experience, ensuring that every click of the pencil results in perfect lead extension, solidifying your brand’s reputation for thoughtful engineering and reliable performance.
