What is the Computer Type Five Claw Static Pressure Test Machine? How Does It Improve Testing Precision?

What is a Computer Type Five Claw Static Pressure Test Machine?

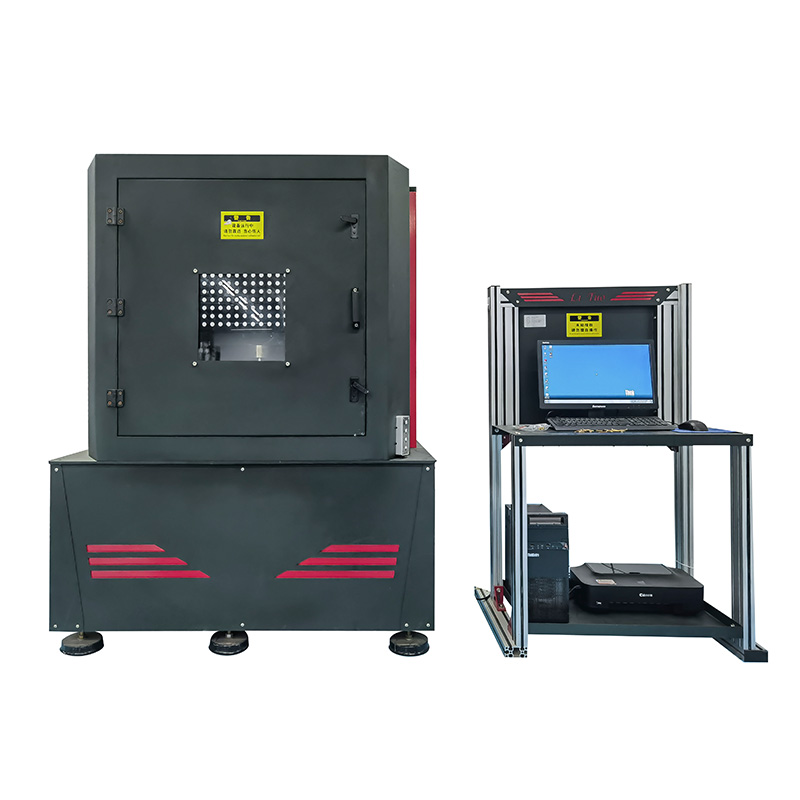

The Computer Type Five Claw Static Pressure Test Machine is an advanced testing device used for simulating real-world pressure and tension conditions in materials. This machine utilizes a unique five-claw design to ensure that tension and pressure are evenly distributed across the sample, providing accurate, reliable results. It is widely used in industries like manufacturing, aerospace, automotive, and engineering to test the durability and strength of materials under various forces.

Key Features of the Machine:

• Maximum Load Capacity: 2000 KG or 5000 KG (optional), ideal for testing large and small samples.

• High Precision: With a resolution of 1/100,000 and precision within 0.5 level, it provides extremely accurate data, ensuring the validity of tests.

• Wide Unit Switching: The machine supports various international units, which makes it highly versatile for global applications.

• Versatile Testing Capabilities: It can measure both stress and strain, and display real-time curves for holding pressure and tension.

How Does the Computer Type Five Claw Static Pressure Test Machine Work?

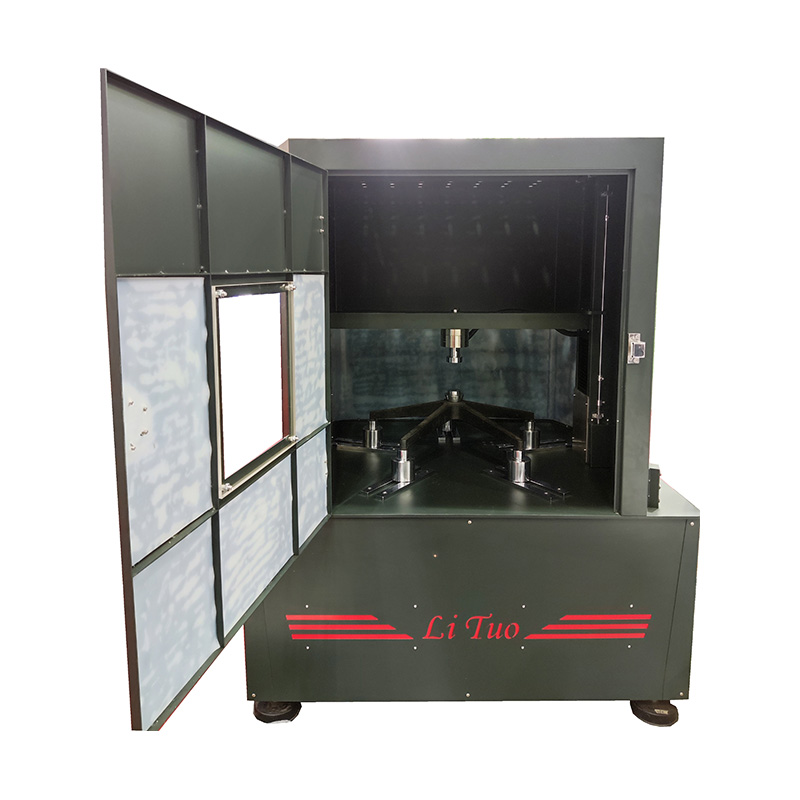

This machine works by applying force to a sample through a system of clamped test points (the five claws). The tension load element can be adjusted up to a maximum of 5000 KG, and the system is fully controlled by a computer. It operates with precise tension and pressure control to simulate real-world scenarios. The test speed is adjustable from 0.001 to 500 mm/min, allowing for various testing conditions.

Key Working Mechanisms:

• Computer-Controlled Speed: The machine adjusts the test speed automatically without the need for manual intervention, enhancing efficiency.

• Servo Motor Drive: Unlike traditional AC or DC motors, the servo motor allows for smooth control and precise adjustments to tension and pressure.

• Dynamic Force Measurement: It measures both stress and strain and provides a visual representation of the load-displacement curve during tests.

Key Features of the Computer Type Five Claw Static Pressure Test Machine

1. High Precision and Sensitivity

• The resolution of the test machine is 1/100,000, ensuring that the smallest changes in pressure and tension are captured with high sensitivity. This makes it ideal for testing materials with intricate tolerance requirements.

2. Unit Flexibility

• The machine supports internationally recognized units, which can be switched at will. This versatility makes it suitable for global use in different countries and industries.

3. Wide Test Speed Range

• The test speed can be finely controlled from 0.001 mm/min to 500 mm/min, ensuring that both fast and slow tests can be conducted depending on the material and testing requirement.

4. Comprehensive Protective Features

• The machine is equipped with several protective devices, including travel control switches, maximum load and extension limits, and emergency shutdown features. These ensure safety during operation.

Applications of the Computer Type Five Claw Static Pressure Test Machine

The Computer Type Five Claw Static Pressure Test Machine has a wide range of applications in various industries, especially where precision testing of materials under tension or pressure is critical.

Key Industries:

• Aerospace: Testing materials used in aircraft components that are subjected to extreme forces.

• Automotive: Evaluating components such as suspension systems, brake parts, and frame materials under tension and pressure.

• Manufacturing: Used in quality control to ensure the integrity of materials used in heavy machinery or consumer products.

• Construction: Ensures that construction materials meet industry standards for stress and strain.

Advantages of Using the Computer Type Five Claw Static Pressure Test Machine in Various Industries

1. Enhanced Accuracy and Reliability

• The machine’s precision ensures that all test results are highly reliable. This is crucial when designing or certifying materials for safety and performance.

2. Automated Testing

• The computer-controlled nature of the machine allows for non-segmented testing, reducing the need for human intervention and improving test repeatability.

3. Real-Time Monitoring and Data Collection

• The machine displays real-time curves for both stress and strain, allowing operators to monitor performance during the test. This can help in quick decision-making and adjustments.

Comparison with Traditional Pressure Test Machines

Traditional Pressure Test Machines vs. Computer Type Five Claw Static Pressure Test Machine:

Key Takeaway:

The Computer Type Five Claw Static Pressure Test Machine offers greater precision, more flexible testing conditions, and automated control compared to traditional systems.

How to Choose the Right Computer Type Five Claw Static Pressure Test Machine

Choosing the right machine depends on several factors:

1. Test Load Requirements: Make sure the maximum load capacity (2000 KG or 5000 KG) suits your testing needs.

2. Speed and Resolution: If high-speed testing is needed, ensure that the speed range (0.001–500 mm/min) is sufficient. Also, consider the resolution (1/100,000) for high-precision tests.

3. Industry Standards: Verify that the machine meets relevant industry standards like BIFMA X5.1-2017, EN 1335:2000, and QB/T 2280-2016.

Maintenance and Calibration of the Computer Type Five Claw Static Pressure Test Machine

Maintenance:

• Regular Cleaning: Ensure the machine is cleaned after each test to maintain optimal performance.

• Servo Motor Calibration: The servo motor should be calibrated periodically to ensure smooth operation and accurate control.

Calibration:

• The system needs to be recalibrated based on industry standards and the type of material being tested. This ensures that each test produces valid and comparable results.

Troubleshooting Common Issues with the Computer Type Five Claw Static Pressure Test Machine

Common Problems:

• Inaccurate Measurements: Check calibration, ensure that no mechanical wear has affected the tension load element.

• Motor Malfunctions: If the servo motor is not operating correctly, inspect the motor and control system.

• Software Failures: Ensure that the computer software is up-to-date and has no bugs that could interfere with testing.

Conclusion

The Computer Type Five Claw Static Pressure Test Machine is an essential tool for industries that require high-precision tension and pressure testing. With its advanced features, including servo motor control, high precision, and versatile testing capabilities, this machine is ideal for ensuring the integrity and safety of materials. By choosing the right machine, maintaining it properly, and understanding its technical specifications, companies can ensure that their testing processes meet the highest standards of quality.
