A Bed Frame Strength Tester is used to evaluate the structural strength, durability, and long-term performance of beds and bed frames under repeated loading. For furniture manufacturers, reliable durability testing helps identify structural weaknesses before products reach the market.
Why Is Bed Frame Durability Testing Important?
A bed is subjected to repeated loads during everyday use. Over time, these loads can cause deformation, loosening, cracking, or failure of structural components.
A Bed Frame Durability Tester simulates repeated loading to help manufacturers determine whether a bed can maintain its structural performance after thousands of cycles.
The test results can be used for:
- Product development
- Structural optimization
- Quality control
- Durability evaluation
- Furniture safety testing
- Comparison of different materials and designs
How Does a Bed Frame Strength Tester Work?
The bed is securely positioned on the testing platform, while electric cylinders apply controlled forces to specified areas of the structure.
For this system, the typical testing force can be set to 950 ± 50 N, with a target of up to 50,000 cycles. The two electric cylinders can be adjusted in multiple directions, allowing the test position to be adapted to different bed structures.
The testing software controls important parameters such as force, displacement, speed, holding time, cycle interval, and test cycles. Operators can also monitor the force curve and cylinder displacement in real time.

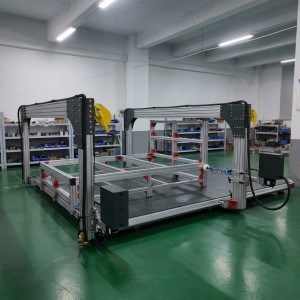

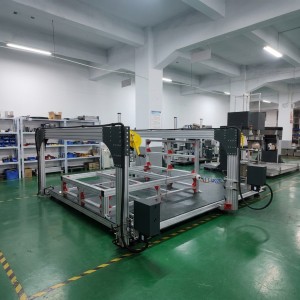

Servo Bed Frame Strength and Durability Testing Machine
Lituo’s Bed Frame Strength and Durability Testing Machine is designed for demanding furniture durability applications. Its dual-cylinder configuration allows two sides of a bed to be tested simultaneously while maintaining independent parameter control.
The system supports beds up to approximately 1.8 × 2.0 m per station and can be configured with a large threaded-hole testing platform for flexible fixture positioning.
The electric cylinders feature adjustable positioning in multiple directions and can be equipped with extension rods and a front-end cushioning mechanism to provide smoother force application.
Key Features
Dual-Station Testing
The machine can be configured to test two beds simultaneously, improving laboratory efficiency for furniture manufacturers and testing institutions.
50,000-Cycle Durability Testing
The system is designed for long-duration testing with up to 50,000 cycles, making it suitable for evaluating repeated-use performance.
Programmable Test Force
The target force can be programmed according to the testing requirement, with 950 ± 50 N specified for the typical application described for this equipment.
Multi-Stage Speed Control
The software can independently configure different speeds during the extension, contact/loading, and return stages, helping achieve smoother and more controlled testing.
Real-Time Test Data
Operators can monitor force, displacement, cycle count, and force curves during testing. Test records can also be saved and exported for further analysis.
Automatic Failure Detection
Force and deformation limits can be configured. When the measured value exceeds the specified limit, the machine can automatically pause and trigger an alarm.
Applications of Bed Frame Testing
A Bed Durability Testing Machine can be used for testing:
- Bed frames
- Platform beds
- Metal bed frames
- Wooden bed structures
- Upholstered beds
- Bedroom furniture
- Bed support structures
- Furniture structural components
It is particularly useful for furniture manufacturers, bed manufacturers, furniture hardware suppliers, third-party laboratories, quality inspection organizations, and research institutions.
Testing Standards for Beds
International bed testing may involve different standards depending on the product design, market, and specific test method.
For example, EN 1725:2023 covers safety, strength, and durability requirements for fully assembled adult beds, while ISO 19833:2018 specifies test methods for evaluating the stability, strength, and durability of beds.
The exact standard and test configuration should be confirmed according to the customer’s target market and product requirements.
Why Choose Lituo for Bed Testing Equipment?
With more than 18 years of experience in testing equipment manufacturing, Lituo provides customized testing solutions for furniture manufacturers and laboratories.
In addition to supplying a Bed Frame Strength Tester, Lituo can provide standards consultation, fixture design, equipment installation, commissioning, operator training, and software support.
The equipment can also be customized according to bed dimensions, loading positions, force requirements, test cycles, and customer-specific testing procedures.
Conclusion
A reliable Bed Frame Durability Tester provides manufacturers with important data about structural strength and long-term performance. By simulating repeated loading and monitoring force, displacement, and deformation, manufacturers can identify potential failures and improve product reliability.
Lituo’s Servo Bed Frame Strength and Durability Testing Machine combines dual-station testing, programmable electric-cylinder loading, real-time data monitoring, multi-stage speed control, and automatic failure detection, making it suitable for professional bed and furniture durability testing.
Post time: Sep-02-2026
