Cistern fittings may be small components, but they play a critical role in the reliable operation of a toilet. Components such as inlet valves and flush valves control water filling, water level, flushing, and sealing. If these components perform poorly, problems such as continuous water flow, insufficient flushing, unstable water levels, or leakage may occur. For toilet and sanitary ware manufacturers, comprehensive testing of cistern fittings is therefore an important part of product quality control.
In actual use, cistern fittings are exposed to water pressure and repeated operating conditions over long periods. A component that performs normally during a basic functional inspection may still develop problems after extended use or under different pressure conditions. Testing under controlled conditions allows manufacturers to identify potential weaknesses before products reach the market. This is particularly important for manufacturers producing large quantities of toilet and smart toilet products, where a small component failure can result in significant after-sales issues.
The performance of an inlet valve directly affects how reliably a cistern fills with water. The valve needs to respond properly to changes in water level and shut off the water supply when the required level is reached. If the valve does not close completely, the toilet may continuously consume water. If the water level is unstable, flushing performance can also be affected. A professional testing system can provide controlled water conditions and monitor water-level changes, making it easier for manufacturers to evaluate inlet valve performance and maintain consistent product quality.
Flush valves are equally important because they determine whether water can be released effectively during flushing and whether the water flow can be stopped reliably afterward. Poor sealing or unstable valve operation may lead to water leakage or inconsistent flushing performance. By testing flush valves under controlled water pressure and operating conditions, manufacturers can detect potential problems during the product development and production stages rather than relying solely on finished-product inspection.
This is where the Cistern Fittings Comprehensive Performance Test Bench provides value. The test bench is designed specifically for the performance evaluation of toilet cistern fittings, including inlet valves and flush valves. Its water pump can provide static pressure from 0.02 to 2.0 MPa, allowing manufacturers to evaluate components under different pressure conditions. A 0–300 mm water-level sensor is also provided for monitoring water-level changes during testing, helping create a more controlled and repeatable testing process.
Standardized testing is particularly important for manufacturers supplying different markets. Manual inspection can depend heavily on operator experience, making it difficult to maintain exactly the same testing conditions between samples. A dedicated test bench can help standardize the testing process and provide a more consistent basis for comparing products, materials, designs, and component suppliers.
Testing also plays an important role in product development. When a manufacturer develops a new inlet valve or flush valve, laboratory testing can be used to compare different structural designs and identify potential performance issues at an early stage. Test results can then be fed back into the design process, helping engineers optimize the component before mass production. This approach can reduce development risks while improving product consistency.

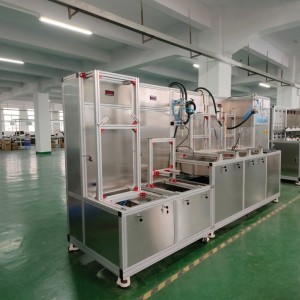

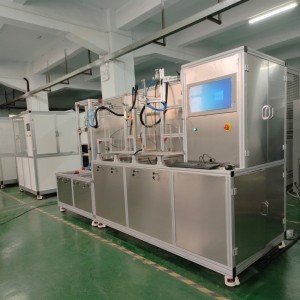

For production quality control, the ability to test multiple samples efficiently is also valuable. The Cistern Fittings Comprehensive Performance Test Bench is equipped with two test stations and uses a touchscreen control system, with computer control available as an option. Its aluminum profile and aluminum-plastic panel construction provides a practical configuration for sanitary ware manufacturers, component suppliers, and testing laboratories. The machine can also be customized according to specific testing requirements and laboratory space.
As toilets and smart toilets continue to develop, manufacturers are paying increasing attention to reliability, water efficiency, and long-term performance. Cistern fittings are an essential part of this overall system, and their quality can directly influence the performance of the finished product. Comprehensive testing therefore should not be considered only as a final inspection step. It can become part of the entire quality management process, covering product development, component verification, production inspection, and final quality control.
The Cistern Fittings Comprehensive Performance Test Bench provides manufacturers with a dedicated platform for evaluating inlet valves and flush valves under controlled water pressure and water-level conditions. By establishing a standardized testing process, manufacturers can identify potential problems earlier, improve component reliability, maintain consistent product quality, and build greater confidence in their finished toilet and sanitary ware products.
