The Comprehensive Testing Machine for Furniture Mechanics is a specialized equipment designed to evaluate the mechanical properties of various furniture types, playing a crucial role in quality assurance for manufacturers. It is widely applicable to finished products such as tables, chairs, stools, cabinets, and single-layer beds used in homes, hotels, restaurants, and other commercial settings. By simulating both normal use and habitual misuse scenarios, this machine assesses the strength and durability of furniture components under one-time or repetitive loads, ensuring products meet rigorous performance standards.
Key Design and Structure

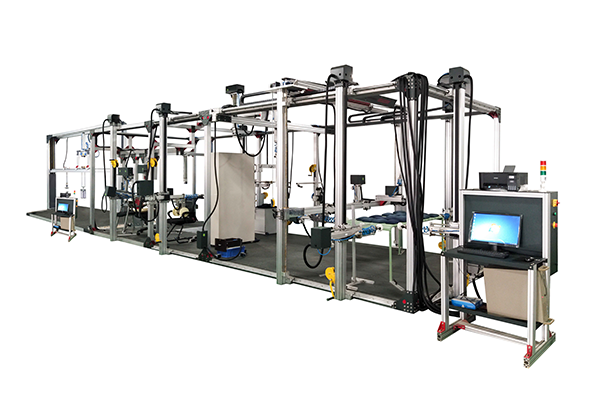

The machine features a robust and stable structure to support accurate testing. Its basic frame size is no less than 8500mm×3200mm×2200mm (with a maximum height of 2600mm), constructed using a high-strength aluminum metal frame modular design. The bottom frame adopts a three-dimensional structure for enhanced stability, while the base combines high-strength industrial aluminum profiles with GB 45 steel (with a thickness of ≥10mm). Strong magnets are used to fix samples, ensuring the instrument operates stably without shaking during tests—critical for reliable and repeatable results.
Technical Parameters
Equipped with advanced features, the machine delivers precise and versatile testing capabilities:
Load Capacity: Supports 200kg and 500kg, with adjustable force values to simulate different usage intensities.
Load Element Accuracy: 3/10000, ensuring high precision in force measurement.
Test Accuracy: ±2% for static forces and ±3% for dynamic forces, meeting strict industry requirements for data reliability.
Loading Control: Utilizes electric cylinders and air cylinders, each controlled by an independent proportional valve. Both cylinders and electrical proportional valves are sourced from imported brands, guaranteeing stable performance and precise control.
Displacement and Travel: Optional ranges of 0-300mm or 0-500mm, accommodating various furniture sizes and testing needs.
Action Timing: Adjustable from 0.01s to 30s for different actions, allowing simulation of diverse usage speeds.
Test Speed: Can be set arbitrarily from 1-30 times per minute, replicating frequent or occasional use patterns.
Test Cycles: Supports up to 999,999 settable test times, enabling long-term durability assessments to simulate years of use.
Compliance with Standards
The machine strictly adheres to a series of national standards for furniture mechanical properties, ensuring test results are authoritative and compliant:
GB/T10357.1-2013: Mechanical properties of furniture — Part 1: Table strength and durability
GB/T10357.2-2013: Mechanical properties of furniture — Part 2: Stability of chairs and benches
GB/T10357.3-2013: Mechanical properties of furniture — Part 3: Strength and durability of chairs and stools
GB/T10357.4-2013: Mechanical properties of furniture — Part 4: Cabinet stability
GB/T10357.5-2013: Mechanical properties of furniture — Part 5: Cabinet strength and durability
GB/T10357.6-2013: Mechanical properties of furniture — Part 6: Strength and durability of single-layer beds
GB/T10357.7-2013: Mechanical properties of furniture — Part 7: Table stability
By aligning with these standards, manufacturers can validate that their products meet safety, strength, and durability requirements, facilitating market access and consumer trust.
Significance in Furniture Manufacturing
The Comprehensive Testing Machine for Furniture Mechanics is indispensable for identifying potential weaknesses in furniture designs and materials. By simulating real-world stressors—such as repeated seating on chairs, heavy loads on tabletops, or frequent opening/closing of cabinet doors—it helps manufacturers refine product structures, select high-quality materials, and improve overall reliability. This not only reduces the risk of product failures and recalls but also enhances brand reputation for producing long-lasting, safe furniture.
In conclusion, this testing machine serves as a cornerstone of quality control in the furniture industry. Its combination of robust design, precise parameters, and compliance with national standards makes it an essential tool for manufacturers committed to delivering high-performance furniture. By investing in this equipment, businesses can ensure their products stand the test of time, meeting both regulatory demands and consumer expectations for durability and safety.
