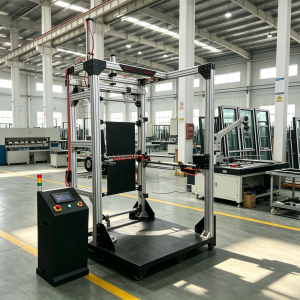

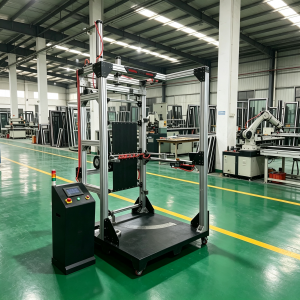

A Door Closer Durability Testing Machine is designed to evaluate the long-term performance and durability of door closers used on decorative and interior doors. During everyday operation, a door closer repeatedly controls the opening and closing movement of a door. Over time, components may experience wear, deformation, loosening, or functional failure. Durability testing helps manufacturers identify these potential problems before products enter the market.
What Is a Door Closer Durability Testing Machine?
A door closer durability tester simulates repeated door-opening and door-closing movements under controlled laboratory conditions. The door closer is installed on a standard test door and connected to the testing mechanism. The machine then automatically operates the door for a predetermined number of cycles.
During or after testing, engineers can inspect the door closer for damage, abnormal operation, loosening, or other conditions that could affect normal use.
This type of equipment is particularly useful for manufacturers that need to evaluate door closer durability, product consistency, and long-term operating performance.
Key Testing Functions
The Lituo Door Closer Testing Machine uses a single-station configuration and supports adjustable testing parameters.
The testing speed can be adjusted from 1–10 cycles/min, allowing users to select an appropriate operating speed for different testing requirements. The opening angle is adjustable from 0–90°, making it possible to simulate different door-opening conditions.
The standard test door is approximately 900 × 2000 mm, providing a practical configuration for commonly used decorative doors.
The machine also features a cycle counter with a range of 0–99,999 cycles, allowing operators to monitor the accumulated number of opening and closing operations.
Pneumatic Clamping and Flexible Test Adjustment
One of the practical features of the equipment is its quick pneumatic clamping system. The door closer and related test components can be securely fixed to the machine, helping reduce setup time.
The testing mechanism can also be adjusted horizontally and vertically. This flexible configuration makes it easier to accommodate different specimen positions and testing arrangements.
Additional auxiliary fixtures can be installed when specific testing requirements call for different configurations.
Stable and Practical Machine Design
The equipment uses a pneumatic drive system and requires a stable air supply of at least 7 kgf/cm². Its structure is designed to keep moving components protected rather than exposed, improving the overall safety and appearance of the testing system.
The machine has approximate dimensions of 1500 × 1500 × 2600 mm and weighs about 85 kg. It operates on AC 220V, 50Hz, 3A power.
These features make the equipment suitable for furniture hardware laboratories, door manufacturers, architectural hardware companies, and quality-control departments.
Why Durability Testing Matters for Door Closers
A door closer may perform normally during a short functional test but develop problems after repeated operation. Continuous cycling can reveal issues that are difficult to identify through visual inspection alone.
A controlled door closer durability test can help manufacturers evaluate:
- Repeated opening and closing performance
- Mechanical durability
- Operating stability
- Potential component damage
- Loosening or deformation after repeated use
- Long-term product consistency
By performing repeatable laboratory testing, manufacturers can obtain more consistent data for product development and quality control.
Applications
The Door Closer Durability Testing Machine can be used by:
- Door closer manufacturers
- Door hardware manufacturers
- Architectural hardware manufacturers
- Interior and decorative door manufacturers
- Building material manufacturers
- Quality inspection laboratories
- R&D centers
- University testing laboratories
It is particularly useful during product development, incoming material evaluation, production quality control, and durability verification.
Conclusion
A reliable Door Closer Durability Testing Machine provides a controlled way to simulate repeated daily door operation and evaluate the durability of door closers. Adjustable testing speed, 0–90° opening angle, pneumatic clamping, flexible fixture adjustment, and automatic cycle counting make the equipment suitable for routine laboratory testing.
For manufacturers of door hardware and decorative doors, repeated-cycle testing can provide valuable information about product durability and help support consistent product quality before shipment.
