Intelligent Faucet Comprehensive Performance Testing Machine: Seal, Flow, Water Hammer & Sensitivity Tester

Introduction: The Complete Testing Solution for Faucets, Showers, and Valves

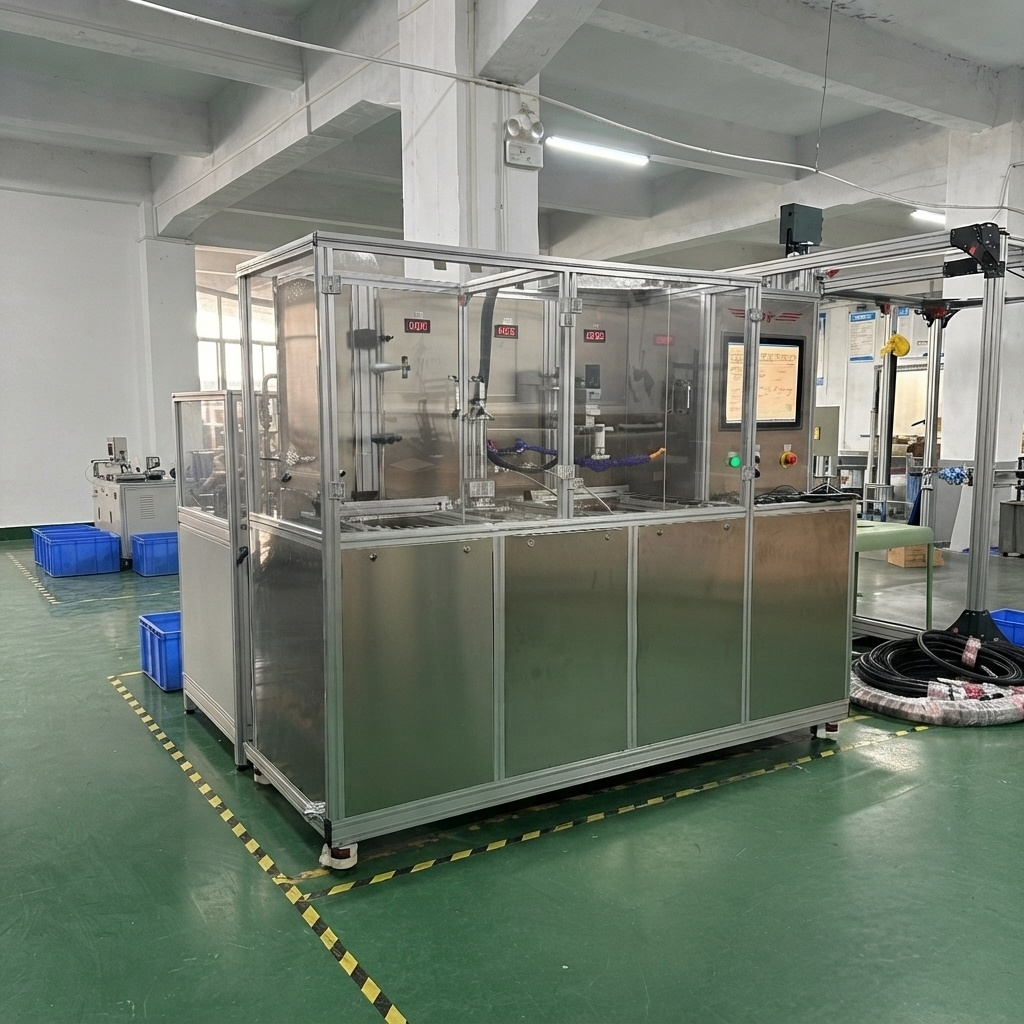

The Intelligent Faucet Comprehensive Performance Testing Machine is a versatile, all-in-one testing system designed to perform a complete range of performance evaluations on modern plumbing products. This equipment is specifically engineered to conduct sealing (leakage) tests, flow rate measurements, water hammer (surge) tests, sensitivity tests for single-lever mixers, and service performance tests for intelligent faucets and smart controllers. It serves manufacturers of mechanical water outlets, showers, flexible hoses, drainage fittings, and angle valves, providing objective, repeatable data to ensure product quality, regulatory compliance, and customer satisfaction. For quality control laboratories, R&D departments, and certification bodies, this comprehensive testing machine is an indispensable tool for validating both conventional and intelligent plumbing products.

Core Testing Capabilities: Comprehensive Performance Evaluation

The Intelligent Faucet Comprehensive Performance Testing Machine integrates multiple critical tests into one automated platform, eliminating the need for separate testing equipment.

1. Seal (Leakage) Test

The sealing test evaluates the integrity of faucet cartridges, valve seals, hose connections, and body castings. The machine applies water or air pressure to the closed product and measures pressure drop over time or detects visible leakage. This test ensures that products are leak-free under both normal operating pressures and extreme conditions, preventing water damage and wasted resources. The system meets the requirements of ASME A112.18.1 and EN 817 for leakage testing.

2. Flow Rate Test

Flow rate measurement verifies that the product delivers the specified water volume (liters per minute) at standard inlet pressures (typically 0.3–0.5 MPa). The machine uses precision flow meters to measure flow at various handle positions, ensuring compliance with water efficiency regulations such as EPA WaterSense and GB/T 18145. This test is critical for both conventional faucets and intelligent water-saving products.

3. Water Hammer (Surge Pressure) Test

Water hammer testing simulates the sudden pressure spikes that occur in plumbing systems when water flow is abruptly stopped (e.g., when a valve closes quickly). The machine rapidly cycles the product’s shut-off mechanism, measuring pressure surges to assess the durability of internal components—ceramic discs, seals, and valve bodies—against hydraulic shock. This test helps prevent premature failure in real-world plumbing systems.

4. Sensitivity Test (Single-Lever Mixing Valves)

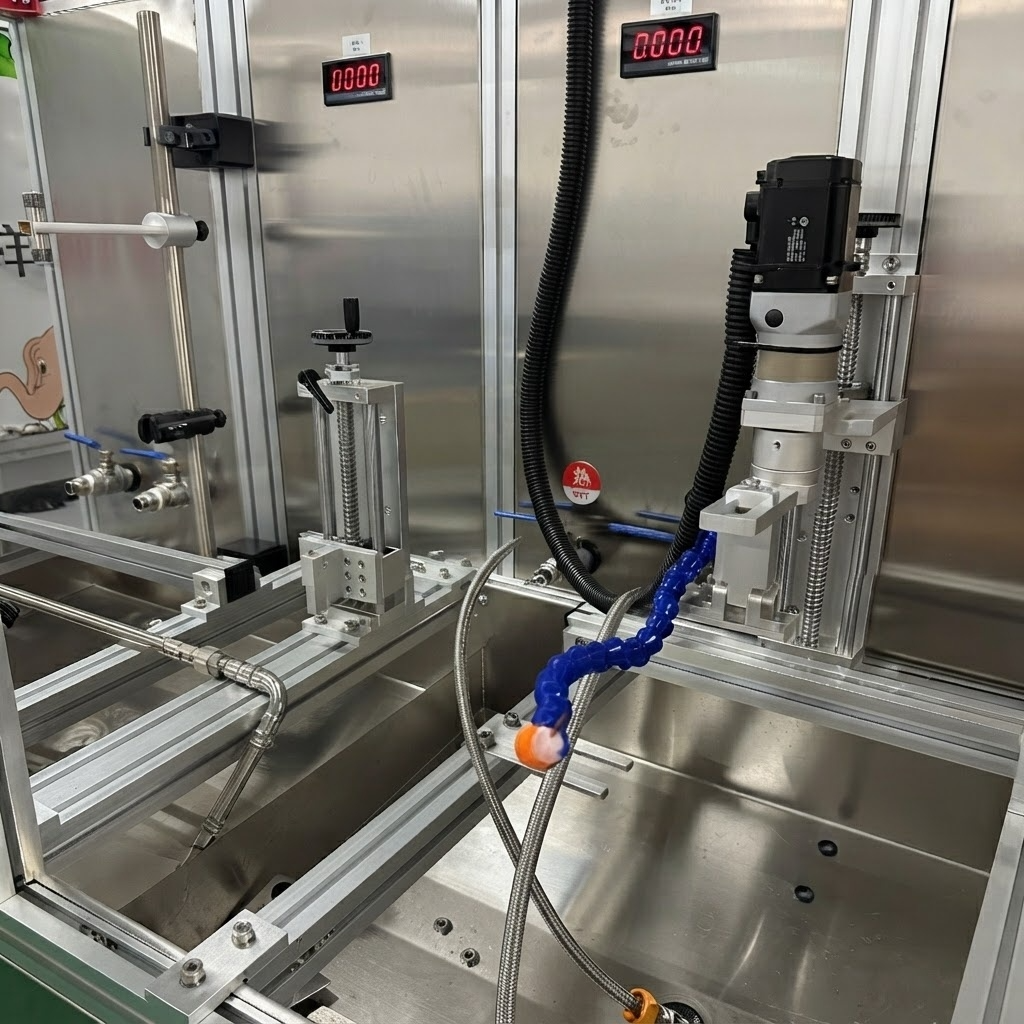

For single-lever mixer taps, sensitivity testing evaluates the precision and smoothness of temperature and flow control. The machine rotates the lever at controlled speeds while measuring flow and temperature changes. It quantifies key parameters including handle play, torque (resistance to turning), and linearity—ensuring that the user can achieve precise temperature and flow adjustments with minimal effort. This test is essential for meeting user expectations for comfort and ease of use.

5. Intelligent Faucet & Smart Controller Service Performance Test

With the growing adoption of intelligent plumbing products, this testing machine includes specialized capabilities for evaluating electronic and smart features. The system tests:

• Touchless sensor reliability: Verifies that infrared or capacitive sensors detect user presence consistently.
• Solenoid valve durability: Tests the opening/closing cycles of electronically controlled valves.
• Temperature display accuracy: For faucets with LED or digital temperature displays.
• Connectivity and control: Evaluates wireless communication (if applicable) and controller responsiveness.

Additional Component Testing Capabilities

Beyond faucets, the Intelligent Faucet Comprehensive Performance Testing Machine is also designed to test a wide range of other plumbing products:

• Showers and Hand Showers: Tests spray pattern consistency, flow rate, and seal integrity under various pressures.
• Flexible Hoses: Evaluates burst pressure resistance, elongation under pressure, and connection durability.
• Drainage Fittings: Assesses seal integrity and mechanical endurance.
• Angle Valves: Tests sealing performance and operational smoothness under repeated opening/closing cycles.

Key Technical Features and Specifications

Professional intelligent faucet comprehensive performance testing machines are equipped with advanced components and features to ensure accurate, repeatable, and efficient testing:

• Precision Flow Meters: High-accuracy flow measurement (typically ±1% of reading) for reliable flow rate testing.
• Pressure Sensors: Monitors inlet and outlet pressures (0–1.6 MPa) with high precision.
• Torque Sensors (for sensitivity test): Measures handle operating torque with 0.01 Nm resolution.
• Programmable Logic Controller (PLC) with Touch Screen: Intuitive interface for setting test parameters, monitoring real-time data, and generating reports.
• Water Temperature Control (Optional): Integrated heating and cooling system for hot/cold water supply testing.
• Automatic Cycle Control: Programmable opening/closing cycles for endurance and water hammer testing.
• Data Logging and Export: USB and Ethernet ports for data export and report generation.
• Safety Features: Over-pressure protection, emergency stop, and leak detection.

Compliance with International Standards

The Intelligent Faucet Comprehensive Performance Testing Machine is designed to meet the requirements of major international plumbing and faucet standards, ensuring global recognition of test results:

• ASME A112.18.1 / CSA B125.1: Plumbing supply fittings – Performance requirements (seal, flow, water hammer).
• EN 817: Mechanical mixers (single-lever) – General technical specifications (sensitivity, flow, seal).
• EN 1111: Sanitary tapware – Thermostatic mixing valves – General technical specification.
• GB/T 18145: Chinese national standard for sanitary taps (seal, flow, sensitivity).
• GB/T 23447: Chinese standard for shower systems.
• EPA WaterSense: Water efficiency and flow rate requirements.

Applications and Benefits for Manufacturers and Test Labs

This comprehensive testing machine is widely used by manufacturers, quality control laboratories, R&D departments, and certification bodies across the plumbing industry.

For Manufacturers

• Design Validation: Verify that new faucet, shower, and valve designs meet performance requirements before production.
• Quality Control: Conduct regular batch testing to ensure consistent product quality.
• Regulatory Compliance: Generate documented test data for certification to ASME, EN, and GB standards.
• Smart Product Validation: Test intelligent features such as sensors, electronics, and controllers.

For Testing Laboratories and Certification Bodies

• Comprehensive Testing: One machine covers all required tests for faucets, showers, hoses, and valves.
• Efficiency: Automated testing reduces labor costs and increases throughput.
• Accreditation: Results are recognized by major international standards bodies.

Key Benefits

• Versatility: Tests both mechanical and intelligent plumbing products.
• Precision: High-accuracy sensors ensure reliable, repeatable results.
• Efficiency: Automated testing with multi-station capability reduces test time.
• Compliance: Meets major international and national standards.
• Cost Savings: One machine replaces multiple single-purpose testers.

Testing Workflow Overview

Using the Intelligent Faucet Comprehensive Performance Testing Machine follows a streamlined process:

1. Specimen Installation: Mount the product (faucet, shower, hose, valve, etc.) onto the test fixture using quick-connect fittings.
2. Parameter Setting: Select the desired test sequence (seal, flow, water hammer, sensitivity, or smart function) and set parameters via the touchscreen interface.
3. Test Execution: Start the test; the machine automatically executes the programmed test sequence, recording data in real time.
4. Data Analysis: The system generates test results, including pass/fail determination and detailed performance data.
5. Report Generation: Produce comprehensive test reports with graphs and tables for certification and quality documentation.

Conclusion: The Complete Quality Solution for Modern Plumbing Products

The Intelligent Faucet Comprehensive Performance Testing Machine is the ultimate testing solution for manufacturers, quality laboratories, and certification bodies working with mechanical and intelligent plumbing products. By integrating seal testing, flow rate measurement, water hammer testing, sensitivity evaluation, and smart controller performance validation into one automated system, this machine delivers comprehensive, reliable, and repeatable test results. Whether you produce conventional faucets, showers, hoses, angle valves, or advanced intelligent water outlets, this tester ensures your products meet the highest standards of quality, safety, and efficiency. Investing in this comprehensive testing machine is a strategic commitment to product excellence, regulatory compliance, and customer satisfaction.
