Introduction: The Critical Need for Mattress Spring Fatigue Testing
In the competitive mattress manufacturing industry, product durability directly impacts brand reputation, customer satisfaction, and warranty costs. A mattress that loses support, develops sagging (dimpling), or experiences spring failure after months of use leads to customer returns, negative reviews, and financial losses. The Mattress Spring Fatigue Testing Machine (also known as the Cornell Mattress Durability Tester or Cornell Type Tester) is a specialized testing system designed to evaluate the capacity of mattresses to withstand long-term repeated loads and measure compression deformation. By simulating years of nightly use in a controlled laboratory environment, this machine provides objective, repeatable data that helps manufacturers ensure product quality, meet international standards, and build consumer trust.
How the Mattress Spring Fatigue Testing Machine Works
The Mattress Spring Fatigue Testing Machine adopts the well-established Cornell fatigue test method for mattresses and bedding products. This method is widely recognized for assessing the long-term durability of innerspring and boxspring mattresses.
The machine operates on a robust electromechanical principle. An electric motor drives an eccentric wheel mechanism that converts rotary motion into controlled vertical reciprocating motion. After adjusting the impact height of the impact block (typically 0–300mm adjustable), the machine continuously impacts the mattress at a frequency of 120–160 cycles per minute. A digital counter records impact cycles, and the unit stops automatically once the preset number of cycles is reached.

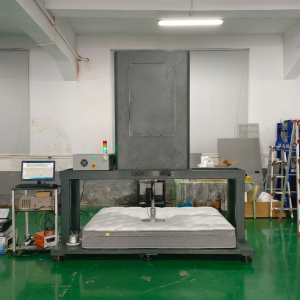

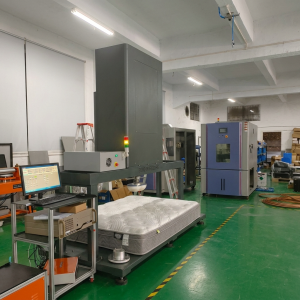

The machine consists of a double hemispherical ram head on a manually adjustable shaft. A load cell located on the ram head measures the force being applied to the mattress in real time. The shaft is connected to an adjustable eccentric which is rotated by an electric motor at up to 160 cycles per minute[reference:16].
Standards Compliance: ASTM F1566
The Mattress Spring Fatigue Testing Machine is manufactured in strict accordance with ASTM F1566, the Standard Test Methods for Evaluation of Innersprings, Boxsprings, Mattresses or Mattress Sets. This standard outlines nationally recognized methods for testing mattress innersprings, boxsprings, and finished mattresses to ensure uniformity of results.
ASTM F1566 covers four separate test methods for evaluating mattress innerspring or boxspring units, including measurements of firmness, firmness retention, durability, and effect of impact. The impact block and compression block used in the machine conform to ASTM F1566-99 standard requirements.
Comprehensive Testing Capabilities
The Mattress Spring Fatigue Testing Machine evaluates two critical aspects of mattress quality:
1. Long-Term Repeated Load Testing
The machine evaluates the mattress’s capacity to withstand long-term repeated loads. By applying cyclic impacts at 120–160 cycles per minute, the test simulates years of nightly use in a matter of hours. The impact block applies a maximum load of 1025N (approximately 230 lbf) and a minimum load of 22N when the eccentric rotates to its lowest and highest positions respectively.
2. Compression Deformation Measurement
The tester measures the compression deformation (shrinkage deformation) of the mattress[reference:25]. At the end of each test stage, the position of the ram head is noted when a load of 22N is applied to the mattress. A change from the previous static reading is referred to as a “dimple”, and this is recorded[reference:26][reference:27]. This data is essential for assessing long-term support retention and identifying potential sagging issues.
Test Stages and Cycle Program
The Cornell Type Tester performs testing in seven distinct stages, reached when the following cycle counts have been completed at 160 cycles per minute:
- Stage 1: 200 cycles
- Stage 2: 6,000 cycles
- Stage 3: 12,500 cycles
- Stage 4: 25,000 cycles
- Stage 5: 50,000 cycles
- Stage 6: 75,000 cycles
- Stage 7: 100,000 cycles
The duration of the full cyclic testing takes nearly 10.5 hours, simulating approximately 10 years of mattress use. At the end of each stage, the machine records firmness data and dimple measurements, providing a comprehensive profile of how the mattress performs over its simulated lifespan.
Key Technical Specifications
Professional Mattress Spring Fatigue Testing Machines feature the following specifications:
- Force Value Sensor Capacity: MAX 150 kgf
- Display Accuracy: 0.001 kgf
- Display Accuracy (Relative): ±0.1% of displayed value
- Deformation Accuracy: 0.001 mm
- Impact Block Speed: 120–160 times/min (adjustable)
- Impact Height: 0–300 mm (adjustable)
- Counter Range: 0–999,999 times
- Impact Motor Power: 2 kW DC motor
- Control Motor: Panasonic servo motor
- Power Supply: AC220V 50Hz
- Standards Compliance: ASTM F1566-99 / -09 / -14
Applications and Industries
The Mattress Spring Fatigue Testing Machine is widely used across multiple sectors for quality control, material development, and product certification:
- Mattress Manufacturers: Validate new spring designs and ensure batch-to-batch quality consistency
- Innerspring and Boxspring Suppliers: Certify component durability for OEM customers
- Testing Laboratories: Conduct third-party compliance testing per ASTM F1566
- R&D Departments: Compare different spring materials, wire gauges, and coil configurations
- Quality Control Departments: Perform routine production testing to identify defects before shipment
Key Benefits for Manufacturers and Testing Laboratories
- Standard Compliance: The tester is manufactured according to ASTM F1566, ensuring test results are recognized and comparable across the industry
- High Efficiency: Operating at 120–160 cycles per minute, the machine completes fatigue tests in approximately 10.5 hours—simulating 10 years of use
- Automated Operation: The programmable counter with automatic stop function enables unattended testing, freeing technician time for other tasks
- Precision Measurement: High-accuracy load cell and deformation sensors (0.001 mm precision) ensure reliable, repeatable results
- Versatility: Suitable for testing innerspring, boxspring, and foam mattresses
- Comprehensive Data: Seven-stage testing provides detailed firmness retention and dimple data for continuous product improvement
Testing Procedure Overview
A typical test using the Mattress Spring Fatigue Testing Machine follows this workflow:
- Specimen Mounting: Insert the mattress onto the test frame and slide the actuator to position the desired test location under the ram head.
- Parameter Setting: Program impact height (0–300mm), test frequency (120–160 cycles/min), and target cycle count via the control interface.
- Initial Measurement: The machine records initial firmness data and ram head position at the start of the test.
- Test Execution: Initiate the test; the machine automatically performs cyclic impacts at the programmed speed while the load cell records force data in real time.
- Stage Testing: At the end of each of the seven stages (200, 6,000, 12,500, 25,000, 50,000, 75,000, and 100,000 cycles), the machine records firmness and dimple measurements.
- Automatic Stop: The counter displays accumulated cycles. The machine stops automatically once the preset number of cycles is reached.
- Report Generation: An operator-prompting computer program measures both the load and ram head position from the two transducers throughout the total test stages and produces a full test report upon completion.
Conclusion: The Essential Tool for Mattress Spring Durability Testing
The Mattress Spring Fatigue Testing Machine is an indispensable instrument for any mattress manufacturer, testing laboratory, or quality control department committed to product durability and compliance with ASTM F1566 standards. By adopting the Cornell fatigue test method and operating at 120–160 cycles per minute with automatic cycle counting and stop functionality, this machine provides efficient, repeatable, and objective data on long-term repeated load capacity and compression deformation. Whether you are developing new spring designs, conducting routine quality control, or certifying products for regulatory compliance, this tester delivers the insights needed to build mattresses that maintain their support, comfort, and structural integrity over years of daily use.
