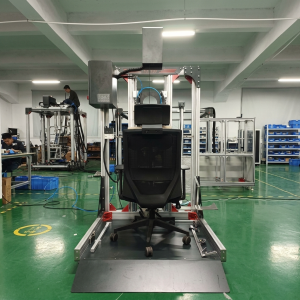

Office Chair Dimension Measuring Machine (with 64kg Loading Block)

Introduction: Precision Dimension Verification for Ergonomic Office Chairs

The Office Chair Dimension Measuring Machine is a professional-grade testing system developed to verify the overall dimensional parameters of office swivel chairs in strict accordance with international furniture testing standards. As the global office furniture industry adopts unified measurement standards, this machine—often referred to as a Chair Measuring Device (CMD)—has become an essential tool for manufacturers, quality control laboratories, and certification bodies seeking to validate chair designs against ergonomic requirements.

Featuring a standard 64kg loading module that simulates the actual sitting load of a human body, this measuring machine conducts load-bearing state dimension detection in full compliance with BIFMA X5.1 test specification requirements. The system integrates digital protractors and precision steel rulers to accurately measure critical chair parameters including backrest tilt angle, seat height, armrest height, and overall width and depth.

Key Features and Technical Specifications

1. Standardized 64kg Loading Module

At the heart of this measuring machine is a 64kg (±0.6kg) loading block that serves as the Chair Measuring Device (CMD) mass. This standardized weight simulates the 50th percentile male body weight, providing a consistent and repeatable loading condition for dimensional measurements. The loading block design conforms to the specifications of international standards, ensuring that measurements are comparable across different laboratories and manufacturers worldwide.

The CMD features a net weight of 64kg with overall dimensions of approximately 618mm × 381mm × 657mm. Additional weight can be placed on the base to accommodate testing for heavier occupant loads.

2. Precision Measurement Instruments

The machine is equipped with comprehensive measurement tools for accurate dimension and angle verification:

• Digital Protractor: Provides precise measurement of backrest tilt angles, seat-to-backrest angles, and other critical angular dimensions with high accuracy.
• Precision Steel Ruler (1m): Enables accurate measurement of seat height, armrest height, overall width, depth, and other linear dimensions.
• Straight Angle Ruler with Level: Ensures proper alignment and perpendicularity checks during measurement procedures.

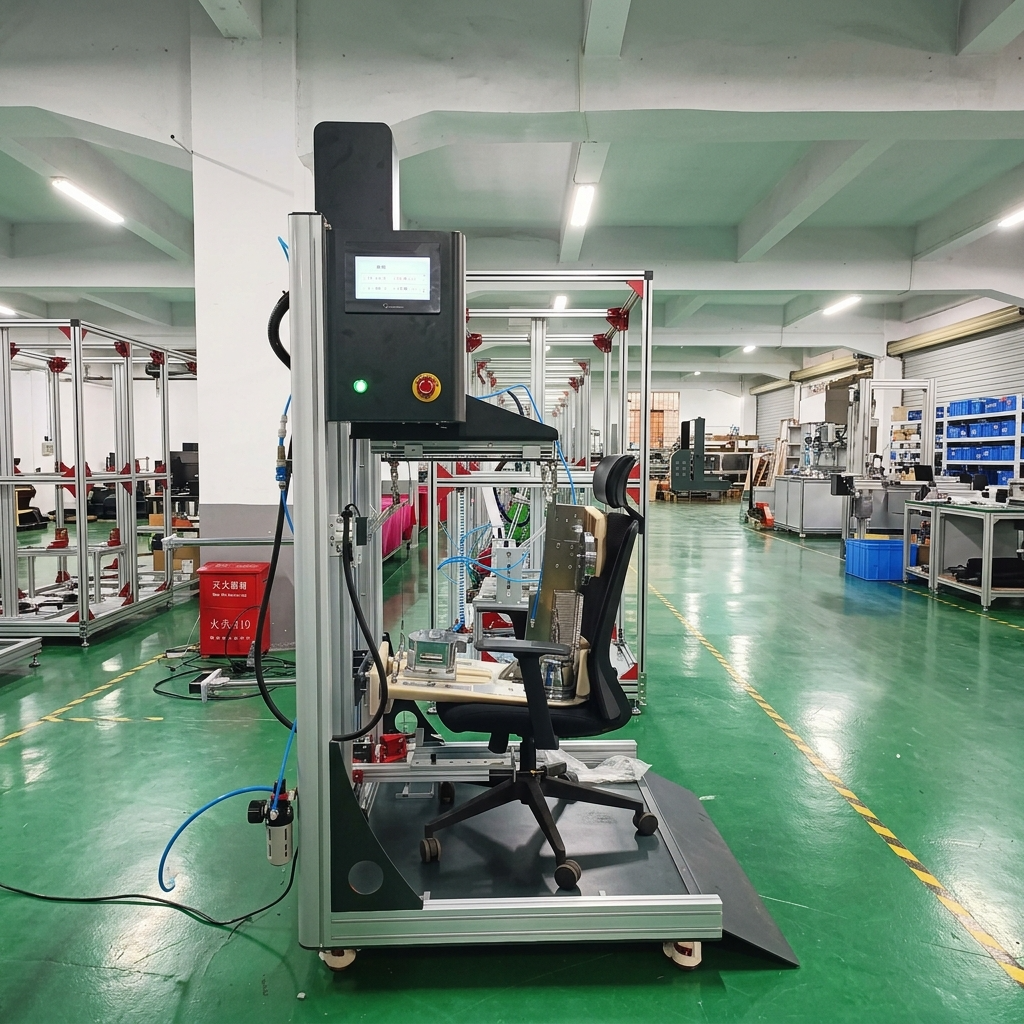

3. Adjustable Pneumatic and Mechanical Systems

The measuring machine features a robust pneumatic drive system that operates smoothly with a standard air source and 220V power supply. Key mechanical specifications include:

• 400mm Pneumatic Cylinder Stroke: Provides smooth, controlled vertical positioning for accommodating different chair heights.
• Height-Adjustable Cross Beam: Maximum height of 1700mm, enabling adaptation to low-back, mid-back, and high-back chair styles.
• Vertical Lifting Cross Beam: Enables flexible positioning for completing multi-point dimension readings across chair frames, leg structures, and backrest assemblies.
• Precision Pressure Regulating Valve: Allows fine adjustment of cylinder thrust for optimal positioning control.

4. Multi-Axis Measurement Capability

The system incorporates three separately movable measuring axes with locking mechanisms. The vertical axis is equipped with a counterweight system for smooth operation. Measurement ranges include:

• Vertical Measuring Range: 300mm to 1100mm above the base plate (difference and absolute height)
• Horizontal Measuring Range: ±500mm from center (difference and absolute distance to center)

Digital measurement devices are provided for each axis, enabling precise determination of seat dimensions in accordance with international standards.

Comprehensive Standards Compliance

The Office Chair Dimension Measuring Machine is designed and manufactured to comply with the following international standards for office furniture testing:

• ANSI/BIFMA X5.1 – General-Purpose Office Chairs – Tests
• BS EN 1335-1 – Office work chairs – Part 1: Dimensions – Determination of dimensions
• ISO/TR 24496 – Office furniture – Office work chairs – Methods for the determination of dimensions
• GB/T 38733 – Chinese national standard for office chair dimension measurement
• DIN 4551 – Office furniture – Office work chairs – Dimensions

The machine is recognized as a valid measurement device for office chair dimension verification. Measurements performed with this CMD are per ISO Technical Report 24496:2012, with updated standards now including ISO/TR 24496:2017.

Operational Workflow

Using the Office Chair Dimension Measuring Machine follows a standardized procedure:

1. Chair Placement: The office chair is positioned on the test platform, with the effective platform width of 800mm accommodating various chair sizes.
2. Loading Module Positioning: The 64kg CMD loading block is positioned on the seat surface using the adjustable pneumatic cylinder system. The height between the bottom of the CMD and the test platform is adjustable from 130mm to 900mm.
3. Dimension Measurement: Using the digital protractor and precision steel ruler, operators measure backrest tilt angle, seat height, armrest height, and overall width and depth.
4. Multi-Point Verification: The vertical lifting cross beam enables flexible positioning for measuring chair frame geometry, leg structure dimensions, and backrest assembly parameters.
5. Data Recording: Measurement results are recorded and compared against ergonomic requirements per ISO 24496 and EN 1335-1.

Applications and Benefits

For Manufacturers

• Design Validation: Verify that chair designs meet ergonomic requirements before mass production
• Quality Control: Conduct regular inspections of production samples to ensure dimensional consistency
• Regulatory Compliance: Generate documented measurement data for BIFMA, EN, ISO, and GB certification audits

For Quality Control Laboratories

• Standardized Testing: Replace manual ruler-and-protractor measurements with repeatable, objective data
• International Recognition: Test results are comparable across different laboratories worldwide due to ISO-standardized CMD design
• Factory QC Inspection: The machine is suitable for routine factory quality control laboratory inspections

Key Benefits

• Precision: Digital measurement instruments eliminate human reading errors
• Repeatability: Standardized 64kg loading block ensures consistent test conditions
• Versatility: Accommodates low-back, mid-back, and high-back chair styles
• Ease of Operation: Pneumatic drive system requires only standard air source and 220V power supply
• Efficiency: Multi-axis measurement capability enables complete dimensional verification in a single setup

Technical Specifications Summary

• CMD Mass: 64kg ± 0.6kg (additional weight can be added)
• CMD Dimensions: 618mm × 381mm × 657mm
• Height Adjustment Range: 130mm to 900mm (bottom of CMD to test platform)
• Effective Platform Width: 800mm
• Pneumatic Cylinder Stroke: 400mm
• Maximum Cross Beam Height: 1700mm
• Vertical Measuring Range: 300mm to 1100mm above base plate
• Horizontal Measuring Range: ±500mm from center
• Machine Weight: 180kg (excluding CMD)
• Overall Dimensions: 1300mm × 1000mm × 1700mm (length × width × height)
• Power Supply: 220V AC



Conclusion: The Essential Tool for Ergonomic Chair Verification

The Office Chair Dimension Measuring Machine (with 64kg Loading Block) represents the industry standard for precise, repeatable dimensional measurement of office swivel chairs. By integrating a standardized 64kg loading module, digital measurement instruments, and flexible pneumatic positioning, this machine enables manufacturers and testing laboratories to verify chair dimensions in full compliance with BIFMA X5.1, EN 1335, ISO 24496, and GB/T 38733 standards.

As the global office furniture industry moves toward unified ergonomic standards, the CMD has become a necessary product for any organization serious about designing and manufacturing ergonomic office chairs. Whether for design validation, production quality control, or regulatory certification, this measuring machine delivers the precision, repeatability, and compliance documentation needed to ensure office chairs meet the highest standards of ergonomic performance.
