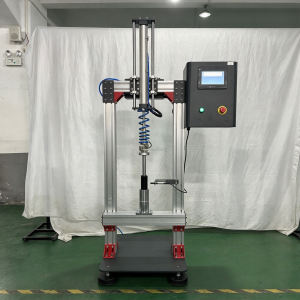

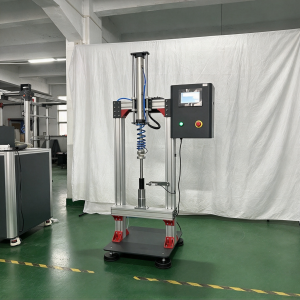

An Office Chair Gas Lift Fatigue Testing Machine is designed to evaluate the fatigue resistance and repeated compression performance of gas lifts used in office chairs, bar stools, high stools and other height-adjustable seating products. Because a gas lift is repeatedly compressed and extended during everyday use, its durability is an important part of overall chair performance.
What Is a Gas Lift Fatigue Testing Machine?
A Gas Lift Fatigue Tester applies repeated compression force to a gas spring or gas lift under controlled conditions. The machine simulates repeated loading that the component may experience during normal chair use.
By performing a specified number of compression cycles, manufacturers can evaluate whether the gas lift maintains stable performance and identify potential problems such as abnormal deformation, loss of supporting force or fatigue-related failure.
The Lituo testing machine uses a pneumatic cylinder loading system and a single test station, making it suitable for routine fatigue testing and quality control.
Why Test Office Chair Gas Lifts?
The gas lift is a critical functional component in height-adjustable office chairs. It supports the seat and allows users to adjust the chair height.
During actual use, the gas lift may experience repeated loading and unloading. A component that performs normally during an initial inspection may show performance changes after repeated compression.
A controlled office chair gas lift fatigue test can help manufacturers evaluate:
- Repeated compression performance
- Fatigue resistance
- Load-bearing stability
- Long-term durability
- Compression force consistency
- Potential performance degradation
These results can be used for product development, production inspection and quality control.
Pneumatic Cylinder Loading
The machine uses a pneumatic cylinder loading system to apply compression force to the gas lift.
The compression force can be set according to the required test conditions and displayed during operation. This allows the operator to monitor the loading condition throughout the test.
Pneumatic loading also provides a practical solution for repeated compression testing, particularly when a large number of cycles are required.
Adjustable Testing Speed
Different gas lift products may require different fatigue test conditions. The machine provides an adjustable testing speed of 5–15 cycles/min.
The operator can select the appropriate speed according to the test procedure and product requirements. This makes the equipment suitable for different types of gas lifts used in office chairs and other seating products.
PLC Touchscreen Control
The PLC + touchscreen HMI control system provides a simple interface for setting and monitoring test parameters.
The operator can configure the testing conditions through the touchscreen while monitoring the compression force during the test.
This control configuration also helps simplify routine operation and makes the machine suitable for furniture factories, component manufacturers and testing laboratories.
Single-Station Fatigue Testing
The equipment is configured with one test station, allowing one gas lift to be tested at a time.
A single-station configuration is suitable for laboratories and manufacturers that need controlled fatigue testing rather than high-throughput production-line inspection.
The machine can be used for both product development and quality verification.
Applicable Seating Products
The Gas Lift Fatigue Testing Machine can be used for gas springs and gas lift cylinders installed in various height-adjustable seating products, including:
- Office chairs
- High stools
- Bar stools
- Adjustable chairs
- Commercial seating
- Other pneumatic seating products
For office chair manufacturers, testing the gas lift separately can provide additional information when evaluating the overall durability of a chair.
Technical Specifications
| Parameter | Specification |
|---|---|
| Test Function | Gas lift repeated compression and fatigue testing |
| Loading Method | Pneumatic cylinder |
| Number of Stations | Single station |
| Testing Speed | 5–15 cycles/min |
| Compression Force | Adjustable and displayed |
| Control System | PLC + Touchscreen HMI |
| Test Type | Repeated compression fatigue test |
| Power Supply | AC 220V, 50Hz |
Benefits for Quality Control
A dedicated chair gas spring tester allows manufacturers to establish repeatable test conditions for gas lift components. Instead of relying only on visual inspection or initial functional checks, repeated compression testing can provide additional information about how a component performs under simulated long-term use.
For gas lift manufacturers, the machine can be used during product development and batch quality control. For office chair manufacturers, it can also support incoming component inspection and supplier quality evaluation.
Conclusion
The Office Chair Gas Lift Fatigue Testing Machine provides a practical solution for evaluating the repeated compression and fatigue performance of gas lifts used in height-adjustable seating.
With pneumatic cylinder loading, adjustable 5–15 cycles/min testing speed, configurable compression force and PLC touchscreen control, the machine can provide controlled and repeatable test conditions for gas spring durability evaluation.
For manufacturers of office chairs, bar stools and gas lift components, incorporating gas lift fatigue testing into quality control can help obtain more consistent durability data and support reliable product development.
