Office Furniture Drawer Slide Durability & Force Tester

Introduction: Why Drawer Slide Testing is Critical for Office Furniture

Drawer slides are among the most frequently used components in office furniture. A drawer that jams, becomes misaligned, or fails completely after months of use leads to user frustration, productivity loss, and costly warranty claims. The Office Furniture Drawer Slide Durability & Force Tester is a specialized testing system designed to evaluate the durability performance of drawer slides installed on desks, filing cabinets, and storage units. This machine performs both cyclic life tests and destructive tests, measuring push and pull forces to assess slide quality, identify design weaknesses, and ensure long-term reliability. For manufacturers, quality control labs, and certification bodies, this equipment is indispensable for meeting international standards and building customer trust.

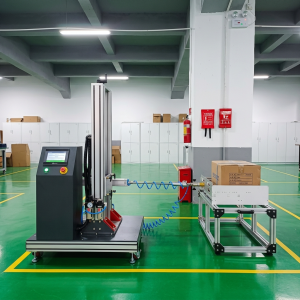

How the Drawer Slide Durability Tester Works

The Office Furniture Drawer Slide Durability Tester uses a programmable linear actuator to simulate the repetitive opening and closing of a loaded drawer. The machine mounts the drawer slide assembly in its actual use configuration, applies a specified load (simulating drawer contents), and cycles the drawer through a preset stroke length for a defined number of test cycles, with programmable dwell interval times at fully open and fully closed positions. Key operational parameters include:

• Stroke length: Adjustable to match the drawer’s full extension (typically 200–600 mm).
• Test cycles: Programmable up to 100,000 cycles or more for life testing.
• Dwell interval: Pause time at open and closed positions (e.g., 1–5 seconds) to simulate actual usage patterns.
• Applied load: Vertical weight on the drawer to simulate contents (adjustable).
• Test speed: Opening/closing speed adjustable (e.g., 0.2–0.5 m/s).



Comprehensive Testing Capabilities

The Office Furniture Drawer Slide Durability Tester performs two primary types of tests to fully characterize slide performance.

1. Cyclic Life (Durability) Test

This is the core test for evaluating the service life of drawer slides. The machine repeatedly opens and closes the drawer under a specified load for a preset number of cycles (e.g., 50,000 or 100,000 cycles according to BIFMA standards). During the test, the machine monitors for:

• Excessive force increase: A gradual rise in push/pull force indicates wear, contamination, or deformation.
• Jamming or sticking: Any interruption in smooth motion signals a failure.
• Unusual noise: Grinding or clicking suggests bearing or roller damage.
• Structural failure: Cracking, bending, or separation of slide components.

After completing the cycle count, the drawer slide is inspected for damage degree — wear marks, deformation, loss of ball bearings, or reduced smoothness. The result determines if the slide passes the life expectancy requirement.

2. Force Measurement & Destructive Testing

In addition to durability, the tester can perform force measurement and destructive tests:

• Push/Pull force measurement: The machine records the maximum force required to open and close the drawer at various load conditions. This data helps optimize slide design for smooth, effortless operation.
• Destructive testing: The operator can set a specific force value (e.g., 500N) and the machine applies increasing load until the slide fails. This determines the ultimate strength and identifies the weakest point in the slide assembly.

Test Procedure: Standardized Workflow

A typical test using the Office Furniture Drawer Slide Durability Tester follows this sequence:

1. Installation: Mount the drawer slide assembly onto the test fixture, replicating actual furniture installation. Apply the specified vertical load (e.g., 50kg) to simulate drawer contents.
2. Parameter setting: Program stroke length, cycle count (e.g., 50,000), test speed, and dwell intervals via the touchscreen interface.
3. Initial measurement: Record baseline push/pull force using the built-in load cell.
4. Cyclic operation: Start the machine; it automatically cycles the drawer for the preset number of cycles, pausing at open/closed positions as programmed.
5. Periodic inspection: Optionally pause the test at intervals (e.g., every 5,000 cycles) to check for visible wear, noise, or force changes.
6. Final evaluation: After completing cycles, measure the final push/pull force, inspect for damage, and compare against acceptance criteria.
7. Report generation: The system produces a detailed test report including cycle count, force data, and damage assessment.



Applications and Benefits

The Office Furniture Drawer Slide Durability Tester is widely used by:

• Furniture manufacturers: Validate new slide designs and ensure batch consistency.
• Hardware suppliers: Certify drawer slides for OEM customers.
• Quality testing laboratories: Conduct third-party compliance testing.
• R&D departments: Compare different slide materials, coatings, and bearing systems.

Key benefits include:

• Improved product reliability: Identify and eliminate premature failure modes.
• Reduced warranty costs: Catch defects before products are shipped to customers.
• Enhanced user experience: Ensure smooth, quiet drawer operation over the product’s life.
• Compliance assurance: Meet BIFMA, EN, and GB standards for drawer slide durability.
• Data-driven design: Use force measurement data to optimize slide geometry and materials.

Compliance with International Standards

The Office Furniture Drawer Slide Durability Tester is designed to meet the requirements of major furniture testing standards:

• BIFMA X5.5-2014: Office furniture – Storage units – Drawer slide durability test (requires 50,000 cycles).
• EN 15338: Hardware for furniture – Strength and durability of sliding and folding door fittings.
• GB/T 10357.5-2011: Test methods for mechanical properties of storage furniture.
• ISO 7170-2: Furniture – Storage units – Part 2: Strength and durability test methods.

Conclusion: Essential for Quality Assurance and Continuous Improvement

The Office Furniture Drawer Slide Durability & Force Tester is an indispensable tool for any organization that manufactures, sources, or specifies drawer slides and office storage furniture. By accurately simulating years of daily use in a controlled laboratory environment, this machine provides the objective data needed to assess service life, measure push/pull forces, perform destructive tests, and judge damage degree. Investing in this tester protects your brand reputation, reduces field failures, and delivers the smooth, reliable drawer performance that office users expect.
