A Carton Compression Tester is designed to evaluate the compressive strength, deformation, and load-bearing performance of cartons, corrugated boxes, and other packaging containers. It is widely used by packaging manufacturers, quality inspection laboratories, and research institutions.
During transportation and storage, cartons may be subjected to stacking and vertical compression. Carton Compression Testing helps manufacturers determine whether their packaging can withstand these loads and protect the products inside.
How Does a Carton Compression Tester Work?
The test specimen is placed between two compression platens. The upper platen moves downward at a controlled speed while a high-precision load cell measures the applied force.
The testing software records the relationship between compression force and deformation and displays the test curve in real time. This allows users to determine the Box Compression Strength, deformation behavior, and failure point of the packaging.
The equipment can be used for compression and stacking-related testing according to applicable standards such as TAPPI T804, JIS Z 0212, and GB/T 4857.

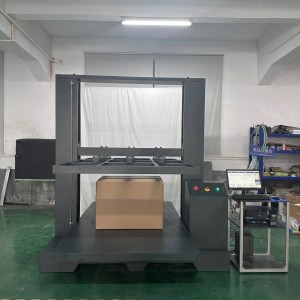

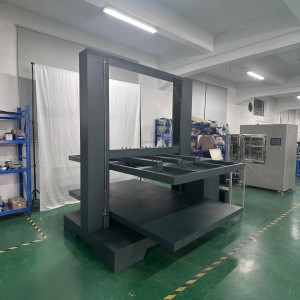

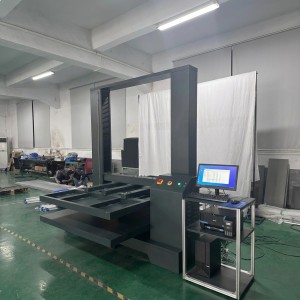

Servo Carton Compression Tester from Lituo
Lituo’s Servo Carton Compression Tester combines a high-precision load cell, Panasonic servo motor, ball screw transmission, and computer-controlled testing software.
The machine offers testing capacities from 500 kg to 50,000 kg, with a force resolution of 1/100,000 and accuracy within ±0.3%. The compression speed can be freely adjusted from 0.01 to 300 mm/min.
Different test spaces are available, including 800 × 800 × 800 mm, 1,000 × 1,000 × 1,000 mm, 1,200 × 1,200 × 1,200 mm, and 1,500 × 1,500 × 1,200 mm. Customized dimensions are also available.
Key Features
- Wide Testing Capacity: 500 kg to 50,000 kg options.
- High Testing Accuracy: Force resolution up to 1/100,000.
- Panasonic Servo Motor: Provides stable and precise movement.
- Adjustable Compression Speed: 0.01–300 mm/min.
- Computer-Controlled System: Real-time compression curve display.
- Customized Solutions: Test space and configuration can be customized.
Applications of Carton Compression Testing
The Carton Compression Testing Machine is suitable for testing:
- Corrugated boxes
- Shipping cartons
- Paper packaging
- Transport packaging
- Industrial packaging
- E-commerce packaging containers
It is widely used in the packaging industry, paper and printing industry, food and beverage industry, logistics and transportation, quality inspection laboratories, and universities.
For companies looking for a reliable Box Compression Tester, Lituo can provide customized equipment according to packaging size, testing capacity, applicable standards, and specific laboratory requirements.
Why Choose Lituo?
With more than 18 years of experience in testing equipment manufacturing, Lituo provides not only Packaging Testing Equipment, but also standards consultation, customized testing solutions, installation, commissioning, operator training, and long-term technical support.
Our 10,000 m² industrial base and 8,000 m² standardized production workshop support both standard and OEM/ODM testing equipment solutions.
