Why Compression Testing is Critical for Packaging Integrity

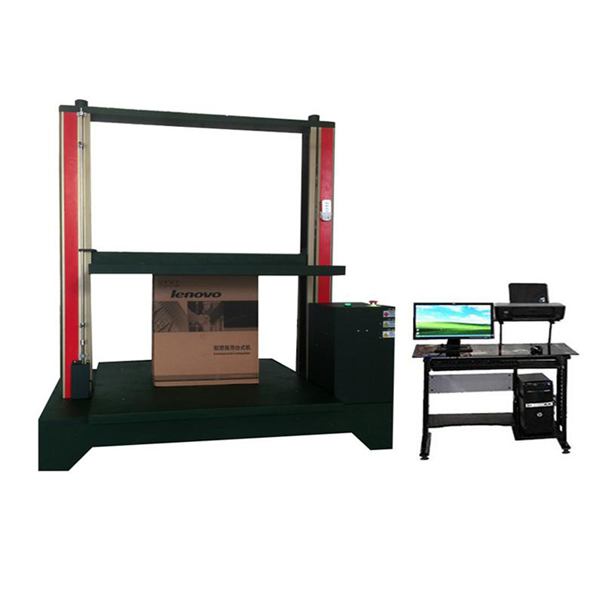

In the packaging and logistics industry, the structural strength of a carton directly impacts product safety and supply chain efficiency. The Servo System Carton Compression Test Machine delivers laboratory-grade precision for measuring this vital property. Combining a high-precision Load Cell with advanced computer control, this equipment provides manufacturers with definitive data on how their containers withstand stacking pressures during storage and transportation.

Core Technology: Servo Control and High-Precision Load Cell

At the heart of this testing system lies a sophisticated servo control system paired with a high-precision Load Cell. The servo motor enables exceptionally smooth, controllable, and repeatable compression force application, while the load cell captures force measurements with minimal signal interference. The computer interface not only controls the test but also records, analyzes, and displays force-displacement data with accuracy typically within ±0.5% of reading.

Key System Components

• Servo Motor & Drive System: Provides precise speed and position control for consistent, repeatable test cycles.
• High-Precision Load Cell: Accurately measures compression force applied to the specimen.
• Computer Control & Data Acquisition: Software allows setting test parameters and generates detailed force-compression graphs.
• Rigid Test Frame: Ensures force is applied vertically without frame deflection.

Understanding the Test: Box Compression Strength (BCT)

The primary function is to determine the compression strength of corrugated boxes, cartons, and other containers. The test specimen is placed on the lower platen, and the upper platen, driven by the servo system, descends at a constant speed to apply a progressively increasing compressive load until the box fails. The maximum force recorded before failure is the Box Compression Strength (BCT)—a critical metric for packaging design and quality control.

Valuable Data Points Captured

• Peak Load (BCT): Maximum force the container can withstand.
• Stiffness: Slope of the initial linear portion of the force-displacement curve.
• Energy Absorbed: Total energy required to crush the box.
• Deformation at Failure: Compression distance at failure.

Applications Across Materials and Industries

While ideal for carton compression testing, the machine’s versatility extends to various containers and materials:

• Corrugated Boxes & Trays: Optimize flute/profile design and stacking strength.
• Plastic Crates & Totes: Evaluate durability of reusable packaging.
• Composite Material Containers: Test boxes made from alternative sustainable materials.
• Packaging Components: Test partitions, inserts, or cushioning elements.

Operational Workflow: From Sample to Report

Operation is streamlined for efficiency. The operator inputs test parameters (platen speed, stop conditions) into the software, places the box on the platen, and initiates the test. The servo system automatically performs compression while the Load Cell feeds real-time data to the computer. Upon failure, the machine stops and retracts. A comprehensive test report is instantly generated, often including statistical analysis for multiple samples.

Strategic Benefits for Packaging Professionals

• Optimize Material Usage: Precisely determine the minimum board grade required for a given load, reducing material costs without sacrificing safety.
• Quality Assurance: Perform batch testing to ensure incoming or outgoing packaging consistently meets strength specifications.
• Design Validation: Test new box designs or closure methods before full-scale production.
• Compliance & Certification: Generate auditable test data to comply with international standards like ASTM D642, ISO 12048, or TAPPI T804.
• Problem Solving: Diagnose root causes of warehouse collapses or in-transit damage with definitive strength data.

Conclusion: The Essential Tool for Data-Driven Packaging Decisions

In an era where supply chain resilience and sustainability are paramount, guessing a box’s strength is an unacceptable risk. The Servo System Carton Compression Test Machine transforms packaging strength from an assumption into a precise, measurable science. By investing in this high-precision testing technology, manufacturers, packaging designers, and quality managers gain the critical data needed to create robust, cost-effective, and reliable packaging solutions that protect products from production to end user.
