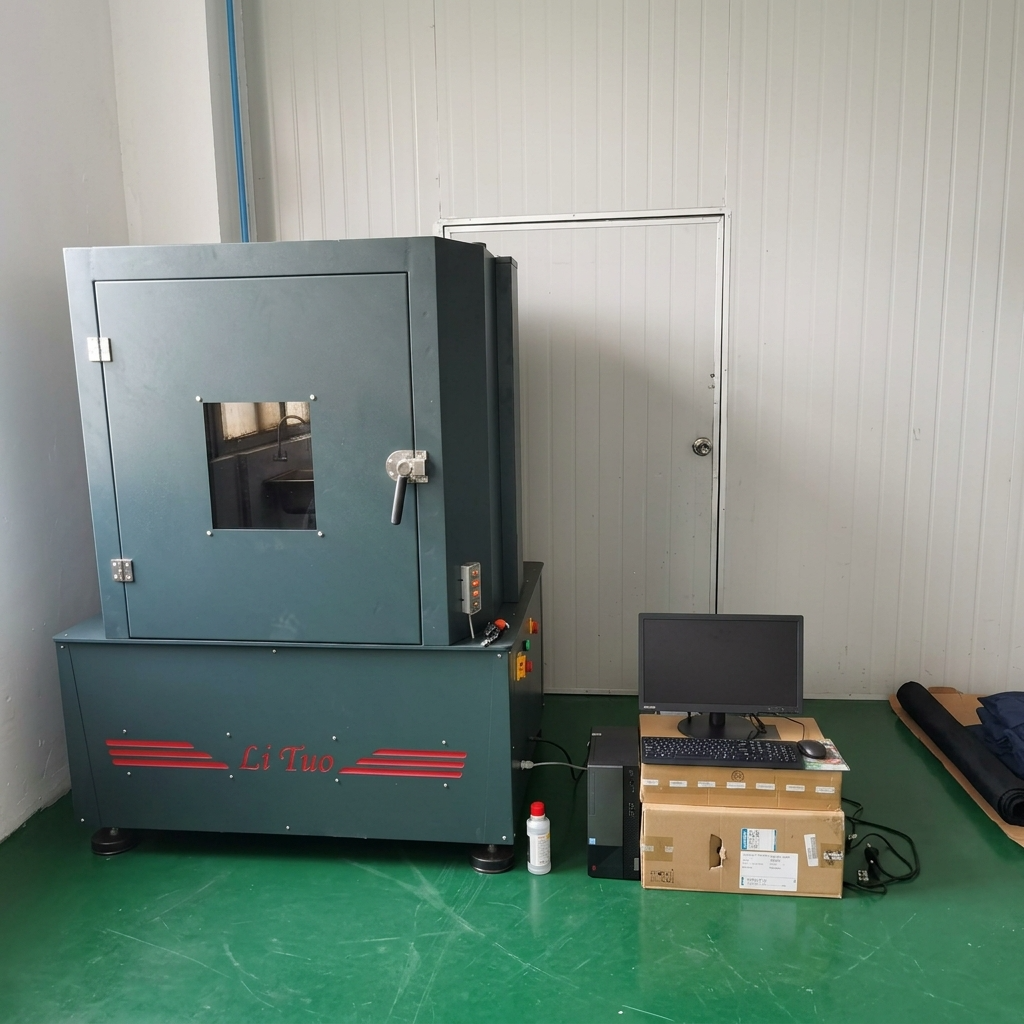

Computerized Office Chair Five-Star Base Static Compression Tester

Introduction: The Foundation of Chair Safety and Durability

The five-star base is the critical structural foundation of any office chair, supporting the full weight of the user and withstanding dynamic forces during daily use. A failure in this component can lead to serious injury, costly liability, and brand damage. The Computerized Office Chair Five-Star Base Static Compression Tester is a precision testing system designed to evaluate the pressure strength of chair bases, identify defect locations, and provide actionable data for quality improvement. This equipment is essential for manufacturers, quality control labs, and certification bodies seeking to ensure compliance with international standards like BIFMA X5.1 and EN 1335.

How the Tester Works: Static Compression Testing Principle

The Computerized Office Chair Five-Star Base Static Compression Tester applies a controlled, gradually increasing vertical load to the center hub of the chair base (where the gas lift cylinder attaches). The base is mounted on a support fixture with its five legs resting evenly on a steel plate, simulating actual installation conditions. A computer-controlled servo-hydraulic or electric actuator drives a loading platen downward at a programmed speed while a high-precision load cell measures the applied force. Simultaneously, displacement sensors record vertical deflection of the base under load. The system generates a complete load-deflection curve, capturing elastic deformation, yield point, and ultimate failure. After reaching a target load (e.g., 2500 lbs per BIFMA) or until failure, the machine unloads and measures permanent set — any residual deformation that indicates structural weakness.

Key Testing Capabilities and Data Outputs

This computerized tester provides comprehensive data beyond simple pass/fail results:

• Ultimate static load capacity: Maximum force the base can withstand before cracking, bending excessively, or fracturing.
• Load-deflection curve: Full force vs. displacement graph revealing stiffness, ductility, and failure mode.
• Permanent deformation measurement: Quantifies how much the base remains bent after load removal — critical for long-term stability.
• Defect location identification: By analyzing deformation patterns and visual inspection after testing, engineers can pinpoint weak points — weld seams, thin rib sections, material voids, or design stress concentrations.
• Comparative analysis: Test different materials (nylon, aluminum, steel) or design iterations under identical conditions to guide improvement.

Applications: Finding Defects, Controlling Quality, Driving Improvement

The Computerized Office Chair Five-Star Base Static Compression Tester serves three primary functions in the manufacturing ecosystem:

• Find defect locations: By testing samples from production batches, the machine reveals consistent weak points. For example, if cracks always initiate at the inner radius of a leg, engineers know to increase the fillet radius or add reinforcing ribs.
• Control product quality: Regular batch testing ensures that every production run meets strength specifications. The system automatically compares results against preset limits and flags out-of-spec samples.
• Provide reference for improvement: The detailed data — including force-displacement curves, deformation values, and failure photographs — gives R&D teams objective evidence to guide material selection, design modifications, and process adjustments.

Test Procedure: Standardized Protocol for Reliable Results

Using the Computerized Office Chair Five-Star Base Static Compression Tester follows a clear, repeatable workflow:

1. Specimen preparation: Clean the base and remove casters. Mount it on the support fixture with legs resting evenly.
2. Parameter setting: Input target load (e.g., 1360 kg for BIFMA), loading speed (e.g., 10 mm/min), and dwell time (e.g., 60 seconds) via the computer interface.
3. Pre-test measurement: Record initial height and zero the displacement sensors.
4. Load application: The actuator applies force at the programmed speed while the system records real-time force and displacement data.
5. Dwell and unload: Hold at target load for specified time, then gradually unload while monitoring recovery.
6. Post-test inspection: Remove the base, measure permanent deformation, and inspect for cracks or other damage. Photograph defect locations.
7. Report generation: The software produces a comprehensive test report including load-deflection curves, pass/fail determination, and defect analysis.

Compliance with International Standards

This tester is designed to meet the requirements of major office furniture standards:

• BIFMA X5.1-2017: Section 10 – Base static load test (2500 lbs / 136 kg, 1 minute dwell).
• EN 1335-3:2009: Clause 4.6 – Base static load test for office chairs.
• ANSI/BIFMA X5.11: Heavy-duty and bariatric chair base requirements.
• ISO 21015: International standard for office work chair test methods.
• GB/T 10357.2-2013: Chinese standard for furniture mechanical performance testing.

Key Technical Features

• Load capacity: Up to 2000 kg (4400 lbs) or more, suitable for heavy-duty chairs.
• Load cell accuracy: ±0.5% of reading, Class 1 or better.
• Displacement resolution: 0.01 mm for precise deformation measurement.
• Programmable controller: Touchscreen interface with pre-loaded standard test profiles.
• Data management: Automatic curve plotting, report generation, and export (PDF, Excel).
• Safety features: Emergency stop, overload protection, and safety enclosure.
• Fixture adaptability: Interchangeable support plates and loading indenters for different base designs.

Benefits for Manufacturers and Quality Labs

• Reduce liability risk: Validate base strength to prevent catastrophic failures and injuries.
• Optimize material costs: Use test data to select the minimum required material thickness or grade without over-engineering.
• Accelerate R&D: Rapidly test design iterations to converge on an optimal, cost-effective geometry.
• Ensure production consistency: Regular batch testing maintains quality standards across high-volume manufacturing.
• Support certification: Provide documented test reports for BIFMA, EN, or GB certification audits.

Conclusion: The Essential Tool for Chair Base Quality Assurance

The Computerized Office Chair Five-Star Base Static Compression Tester is an indispensable instrument for any office furniture manufacturer committed to safety, quality, and continuous improvement. By precisely quantifying pressure strength, pinpointing defect locations, and providing objective data for design optimization, this machine empowers engineers to build stronger, lighter, and more reliable chair bases. Whether you are developing a new model, auditing production quality, or certifying for global markets, this tester delivers the insights you need to protect your brand and your users.
