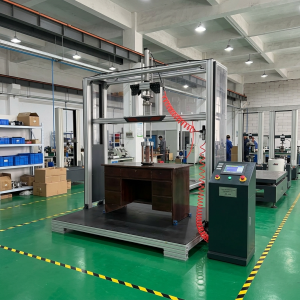

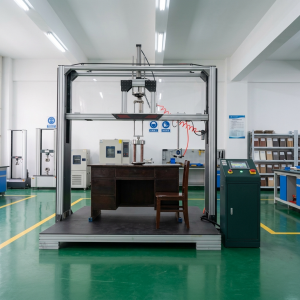

Furniture Impact Drop Durability Tester: Table, Chair & Cabinet Test Machine

Introduction: Why Impact and Drop Testing is Essential for Furniture

Furniture used in homes, hotels, restaurants, and offices must withstand not only daily use but also the rigors of transportation, handling, and accidental impacts. A table that cracks after a minor bump, a chair that breaks when tipped, or a cabinet door that detaches during delivery can lead to customer dissatisfaction, returns, and liability. The Furniture Impact Drop Durability Tester is a specialized machine designed to simulate these real-world hazards — impact forces and drop events — on various furniture types including tables, chairs, stools, cabinets, and storage units. This equipment helps manufacturers validate structural integrity, identify weak points, and ensure products meet quality standards for both commercial and residential use.

Understanding the Test Principle: Simulating Impact and Drop Events

The Furniture Impact Drop Durability Tester combines two testing methodologies in one system:

• Impact Test: A calibrated pendulum or guided falling weight strikes the furniture at specified points (e.g., table edge, chair leg, cabinet corner) with a defined energy (Joules). This simulates accidental collisions during use or handling.
• Drop Test: The furniture specimen is lifted to a preset height and released to free-fall onto a hard impact surface (steel or concrete). This simulates drops during loading, unloading, or moving.

Both tests can be performed on assembled furniture or individual components, depending on the standard and test requirements.

Test Applications Across Furniture Categories

The Furniture Impact Drop Durability Tester is versatile enough to evaluate a wide range of furniture items common in domestic, hotel, and commercial settings.

1. Table Impact & Drop Testing

Tests include impact on table edges and corners (simulating chair or object collision) and drop tests on the tabletop or legs to assess frame strength. The machine evaluates leg attachment points, top panel durability, and overall structural stiffness.

2. Chair & Stool Impact Testing

Chairs and stools are subjected to impact on the seat, backrest, and legs — simulating tipping over or being knocked. Drop tests assess the frame’s ability to survive falls during stacking or transportation. This is critical for stacking chairs used in banquet halls or conference rooms.

3. Cabinet & Storage Unit Drop Testing

Cabinets, filing cabinets, and shelving units are drop-tested on corners, edges, and faces to evaluate joint strength and door/drawer alignment after impact. The machine can also simulate side impacts to check stability and tip-over resistance.

Test Standards and Compliance

A professional Furniture Impact Drop Durability Tester is designed to comply with major international furniture test standards:

• BIFMA X5.1, X5.5, X6.1: Impact and drop tests for office seating, storage, and screens.
• EN 1728: Furniture – Seating – Determination of strength and durability (impact tests).
• EN 1730: Furniture – Tables – Determination of strength, durability, and stability.
• GB/T 10357.1-3: Chinese standards for furniture mechanical properties — Seating, tables, storage.
• ISO 7170-2: Furniture – Storage units – Strength and durability test methods.

Key Technical Features and Specifications

• Impact energy range: Adjustable from 5 J to 100 J (or higher) to simulate different impact severities.
• Drop height range: 100 mm to 1500 mm, programmable with digital height display.
• Drop surface: Rigid steel base plate with optional shock-absorbing inserts.
• Impact pendulum/weight: Interchangeable impact heads (flat, spherical, edge-shaped) for different test requirements.
• Specimen size capacity: Accommodates large cabinets (up to 1.5m × 1.5m) and tall chairs.
• Safety enclosure: Transparent guard to contain debris during high-energy impacts or drops.
• Programmable control: Touchscreen interface with preset test profiles for common standards.
• Data logging: Records impact velocity, drop height, cycle count, and pass/fail results.

Testing Procedure Overview

Using the Furniture Impact Drop Durability Tester follows a structured process:

1. Specimen preparation: Assemble the furniture as per manufacturer instructions. For drop tests, ensure all hardware is tightened.
2. Test selection: Choose impact or drop test mode, or a combination sequence based on the relevant standard.
3. Parameter setting: Program impact energy or drop height, number of impacts/drops, and impact point locations (e.g., corner, edge, center).
4. Test execution: The machine automatically performs the impact or drop sequence. For drop tests, the specimen is lifted and released repeatedly (e.g., 10 drops on each corner).
5. Inspection: After completing the test sequence, inspect the furniture for cracks, permanent deformation, joint separation, or functional damage (e.g., drawer opening, door closing).
6. Reporting: The system generates a test report documenting parameters, results, and photographs of any damage.

Key Benefits for Manufacturers and Quality Labs

• Risk reduction: Identify structural weaknesses before products are shipped, reducing field failures and liability.
• Compliance assurance: Meet mandatory test requirements for market access in EU, US, and China.
• Competitive advantage: Certify and market furniture as “impact-tested” or “drop-tested” for durability.
• Optimized design: Use test data to reinforce weak points without over-engineering all components.
• Reduced returns and warranty costs: Prevent damage during transportation and initial installation.

Conclusion: The Essential Tool for Furniture Durability Validation

The Furniture Table Chair Cabinet Impact Drop Durability Tester is an indispensable instrument for any manufacturer, testing laboratory, or quality control department dealing with furniture for residential, hotel, or commercial use. By accurately simulating the impacts and drops that furniture encounters during its life cycle — from factory to end-user — this machine provides the objective data needed to engineer robust, safe, and long-lasting products. Investing in this tester protects your brand, satisfies regulatory requirements, and ensures that your furniture can withstand the real-world challenges of daily use and transportation.
