A Sofa Swivel Durability Testing Machine is designed to evaluate the durability and service life of sofas and chairs equipped with rotating seats. Repeated rotation during everyday use can place continuous stress on the seat structure, connection points, gas lift or supporting components. Laboratory durability testing helps manufacturers identify potential failures and verify product performance under repeated loading.
What Is a Sofa Swivel Durability Testing Machine?

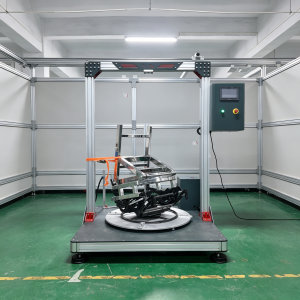

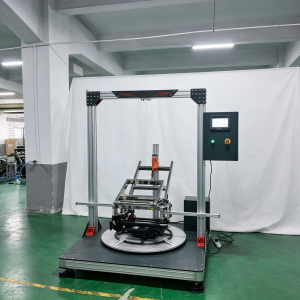

A swivel durability tester simulates repeated rotational movement while applying a controlled load to the seat. During the test, the test platform rotates according to preset parameters while a pneumatic cylinder applies a specified force to the seating surface.
This testing method can be used for different types of swivel sofas, swivel chairs and rotating seating products. By controlling the rotation speed, loading force and number of cycles, manufacturers can obtain repeatable durability test results.
The Lituo machine is designed according to relevant requirements of QB/T 2280-2007, BIFMA X5.1-2011 and EN 1335:2000.
Key Features of the Swivel Durability Tester
One important feature is the variable-frequency drive system. The rotation speed can be controlled through multiple speed settings, allowing smooth speed changes during operation. The digital display provides a clear indication of the rotation frequency.
The machine supports a rotation speed of approximately 5–15 CPM, while the rotation mode can be configured for repeated reciprocating rotation or continuous rotation in one direction.
This flexibility allows manufacturers to reproduce different usage conditions according to their testing requirements.
Stable Pneumatic Loading
During a swivel durability test, maintaining a stable loading force is important for obtaining consistent results.
The machine uses a precision pressure regulation system to control the pneumatic cylinder. The cylinder can provide an output force of up to 158.5kgf.
A universal joint is installed at the cylinder output end. This allows the loading system to adapt to different seat angles and helps provide more realistic loading conditions.
The loading height can also be adjusted to accommodate different furniture designs.
Realistic Seat Loading
The test fixture is designed to simulate the actual loading condition of a rotating seat.
The self-aligning structure helps position the specimen while reducing unnecessary vertical loading on the chair legs. The mechanical structure maintains a specified eccentric distance between the seat loading position and the gas pressure rod, helping reproduce the intended loading condition during testing.
A 740mm diameter rotating platform provides the main support for the test specimen.
High-Cycle Durability Testing
Furniture durability testing often requires a large number of repeated operations. The machine provides a cycle counter ranging from 0 to 999,999 cycles.
The system also includes stop and power-off memory functions, allowing the test status and accumulated cycles to be retained when the machine is stopped or power is interrupted.
This is particularly useful for long-duration furniture life testing, where tests may continue for extended periods.
Applications
The Sofa Swivel Durability Testing Machine can be used for:
- Swivel sofas
- Swivel chairs
- Rotating lounge chairs
- Office chairs
- Upholstered furniture
- Other furniture with rotating seat structures
It is suitable for furniture manufacturers, hardware manufacturers, quality inspection laboratories, R&D centers and third-party testing organizations.
Why Test Sofa and Chair Swivel Durability?
A rotating seat is subjected to repeated mechanical movement during normal use. Over time, repeated rotation may affect the structural components, connections and supporting mechanisms.
A controlled swivel durability test can help manufacturers evaluate:
- Rotation performance
- Structural durability
- Repeated-load resistance
- Seat support stability
- Potential component damage
- Long-term service performance
Testing under controlled laboratory conditions also makes it easier to compare different product designs and materials during product development.
Technical Highlights
The equipment provides a practical combination of rotational movement and pneumatic loading. Key specifications include:
- Rotation speed: 5–15 CPM
- Cylinder output force: 158.5kgf
- Seat height: 350–800mm
- Turntable diameter: 740mm
- Cycle counter: 0–999,999 cycles
- Air supply: ≥0.5MPa
- Machine dimensions: approximately 1200 × 1000 × 1680mm
- Power supply: 220V, 50Hz
Standard accessories include a chair center positioning template and a seat loading pad with universal joint.
Conclusion
A Sofa Swivel Durability Testing Machine provides a controlled and repeatable method for evaluating the long-term durability of rotating sofas and chairs. Through adjustable rotation, stable pneumatic loading, flexible fixture adjustment and high-cycle counting, the equipment can simulate repeated use and provide useful durability data.
For furniture manufacturers and testing laboratories, incorporating swivel durability testing into product development and quality control can help evaluate product performance more systematically and support consistent manufacturing quality.
