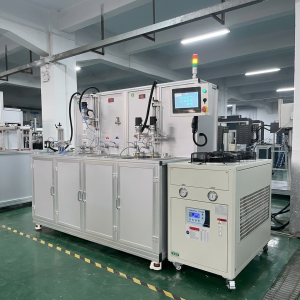

Water Spout Life Testing Machine – Faucet & Intelligent Spout Durability Tester

Introduction: The Critical Need for Water Spout Durability Testing

Water spouts—whether ordinary mechanical models or advanced intelligent spouts—are among the most frequently used fixtures in any building. They are opened and closed thousands of times annually, and their performance directly impacts user satisfaction, water conservation, and maintenance costs. The Water Spout Life Testing Machine is a specialized testing system designed for durability life testing of both ordinary water spouts and intelligent water spouts. By simulating years of repeated operation in a controlled laboratory environment, this machine provides objective, repeatable data to help manufacturers ensure product quality, identify design weaknesses, and meet international standards. For faucet manufacturers, quality control laboratories, and certification bodies, this tester is an essential tool for validating product reliability and compliance.

Modular Test Fixture System: Flexibility for Diverse Product Types

One of the key innovations of the Water Spout Life Testing Machine is its modular test fixture design. The system uses standardized mounting interfaces and interchangeable specimen holders that can be flexibly combined to accommodate different types of water spouts. This modularity significantly improves equipment utilization and testing efficiency by enabling quick changeovers between test configurations.

The modular fixture system supports testing of:

• Single-lever faucets – Standard mechanical mixer taps
• Dual-lever faucets – Separate hot/cold handle configurations
• Intelligent (electronic) water spouts – Touchless, sensor-operated, and digitally controlled models

Comprehensive Testing Capabilities

The Water Spout Life Testing Machine delivers a complete suite of durability tests to fully characterize water spout performance.

1. Life Cycle (Durability) Test – 0~270° Rotation Control

The core function of the machine is repeated opening and closing cycle testing. The system features 0~270° rotation control with a high-precision servo motor achieving 0.2° angle accuracy. This enables precise simulation of handle rotation through the full operational range, from fully closed to fully open and back. The test can be configured with programmable rotation angles, speed, and dwell times to match specific product requirements.

2. Torque Monitoring and Detection

The machine is equipped with a built-in torque sensor that continuously detects and records the handle operating torque throughout the test. By monitoring torque changes over thousands of cycles, the system can identify:

• Gradual increase in operating force due to wear, contamination, or seal degradation
• Irregular torque spikes indicating binding, misalignment, or mechanical damage
• Sudden torque drops indicating component failure or loosening

3. Temperature and Pressure Control

The Water Spout Life Testing Machine features a comprehensive water supply control system to simulate real-world operating conditions:

• Wide temperature test range: Ambient to 90°C hot water, enabling testing under both cold and hot water conditions
• Adjustable water pressure: 0.02MPa to 1.0MPa, covering low-pressure gravity-fed systems to high-pressure municipal supplies



Automated Control and Data Management

The Water Spout Life Testing Machine is powered by a sophisticated control system consisting of:

• PLC (Programmable Logic Controller): For reliable, real-time control of test sequences and safety monitoring
• Computer (PC): For test programming, data acquisition, and report generation
• Professional test software: Intuitive interface for setting test parameters, real-time monitoring, and data export
• Water pump and servo motor: For controlled water supply and precise rotary actuation
• Pneumatic actuators (air cylinders): For auxiliary functions such as specimen clamping and actuation

Optional Multi-Station Configuration

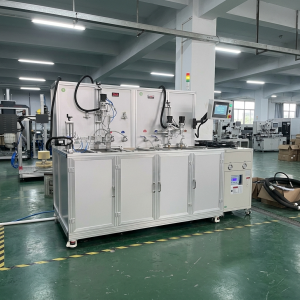

To maximize testing throughput, the Water Spout Life Testing Machine can be configured with multiple test stations (typically 2 to 6 stations). Each station operates independently, allowing simultaneous testing of different product types or different test parameters. This multi-station capability significantly boosts laboratory efficiency and reduces overall testing time.

Key Technical Specifications

• Rotation Control: 0~270° with ±0.2° angle accuracy
• Torque Sensor: Built-in, real-time operating torque measurement
• Hot Water Temperature Range: Ambient ~90°C
• Water Pressure Range: 0.02MPa to 1.0MPa (adjustable)
• Control System: Computer + PLC with professional test software
• Fixture System: Modular design, interchangeable for single-lever, dual-lever, and intelligent spouts
• Test Frequency: Programmable up to 30 cycles per minute (or higher)
• Test Cycles: Programmable up to 999,999 cycles with automatic stop
• Power Supply: 220V AC, 50/60Hz

Compliance with International Standards

The Water Spout Life Testing Machine is designed to meet the requirements of major international plumbing and faucet standards:

• ASME A112.18.1 / CSA B125.1 – Plumbing supply fittings – Performance requirements
• EN 817 – Mechanical mixers (single-lever) – General technical specifications
• EN 1111 – Thermostatic mixing valves – General technical specification
• GB/T 18145 – Chinese national standard for sanitary taps
• NSF/ANSI 61 – Drinking water system components – Health effects

Benefits for Manufacturers and Testing Laboratories

• Versatility: Single machine tests ordinary mechanical spouts and intelligent electronic spouts
• Flexibility: Modular fixtures enable quick changeovers and adaptation to different product types
• High Efficiency: Multi-station configuration and automated operation maximize laboratory throughput
• Precision: 0.2° angle accuracy and built-in torque sensor deliver reliable, repeatable results
• Realistic Testing: Wide temperature and pressure range simulates real-world operating conditions
• Data Management: Computer-based control and professional software for comprehensive data logging and reporting
• Regulatory Compliance: Meets ASME, EN, and GB standards for faucet durability testing

Testing Workflow Overview

1. Fixture Selection: Choose the appropriate modular fixture for the spout type (single-lever, dual-lever, or intelligent)
2. Specimen Installation: Mount the water spout onto the test fixture with secure, leak-free connections
3. Parameter Setting: Program rotation angle, test frequency, water temperature, water pressure, and target cycle count via the software interface
4. Test Execution: Start the test; the system automatically performs repeated open-close cycles while monitoring torque, flow, and pressure
5. Data Recording: The system records torque trends, cycle counts, and test parameters in real time
6. Final Evaluation: After completing the target cycle count, inspect the specimen for wear, leakage, or functional degradation
7. Report Generation: Generate a comprehensive test report documenting all parameters, torque data, and pass/fail determination

Conclusion: The Complete Solution for Water Spout Durability Testing

The Water Spout Life Testing Machine is the ultimate solution for manufacturers, quality control laboratories, and certification bodies seeking to validate the durability of both ordinary and intelligent water spouts. Its combination of modular fixtures, precise rotation control, built-in torque monitoring, wide temperature and pressure range, and automated computer/PLC control makes it an indispensable tool for ensuring product reliability and regulatory compliance. With optional multi-station configuration, the machine maximizes testing efficiency and provides the comprehensive data needed to design, produce, and certify water spouts that deliver consistent, reliable performance over their entire service life.
