General Bathroom Hardware Life Cycle Testing Machine: Endurance Test for Faucets, Showers & Valves

Introduction: The Essential Tool for Bathroom Hardware Reliability Validation

The General Bathroom Hardware Life Cycle Testing Machine is a specialized testing system developed for endurance life testing of bathroom hardware products. This versatile equipment covers a wide range of bathroom fittings including intelligent water nozzles, mixer taps, multi-function showers, drainage fittings, angle valves, and other bathroom accessories. By performing repeated opening and closing cycle tests while monitoring critical performance parameters—torque, flow rate, and water pressure—the machine provides objective, repeatable data to assess the service life and reliability of various bathroom hardware products. For manufacturers, quality control laboratories, and certification bodies, this tester is an indispensable tool for ensuring product durability, regulatory compliance, and customer satisfaction.

How the Bathroom Hardware Life Cycle Tester Works

The General Bathroom Hardware Life Cycle Testing Machine operates on a proven electro-pneumatic or servo-driven principle. The test specimen (faucet, shower, valve, etc.) is mounted on a modular test fixture and connected to a controlled water supply system. The machine then performs repeated opening and closing cycles at a programmed frequency, simulating years of daily use. During the test, the system continuously monitors:

• Operating torque: The force required to open and close the handle or valve, detecting any increase that indicates wear, contamination, or deformation.
• Flow rate: Water volume passing through the fitting per minute, verifying that flow performance remains within specifications throughout the product’s life.
• Water pressure: Inlet and outlet pressure to detect blockages, leaks, or internal component failures.

Core Testing Capabilities and Applications

The General Bathroom Hardware Life Cycle Testing Machine is designed to test a comprehensive range of bathroom hardware products, making it a versatile solution for manufacturers and testing laboratories.

1. Intelligent Water Nozzles and Electronic Faucets

Smart faucets with touchless sensors, LED displays, and electronic controls undergo repeated activation cycles to verify sensor reliability, solenoid valve durability, and overall system integrity. The machine tests both mechanical and electronic components, ensuring that intelligent features continue to function reliably throughout the product’s service life.

2. Mixer Taps and Single-Lever Faucets

Single-lever and dual-handle mixer taps are subjected to thousands of open-close cycles under varying temperature and pressure conditions. The tester measures handle torque changes, cartridge wear, and temperature stability, ensuring smooth and precise control over the product’s lifetime.

3. Multi-Function Showers and Hand Showers

Showerheads and hand showers are tested for spray pattern consistency, flow rate stability, and switch mechanism durability. The machine verifies that mode-switching mechanisms remain functional and leak-free after repeated use.

4. Drainage Fittings and Angle Valves

Drainage components and angle valves are evaluated for seal integrity, mechanical endurance, and resistance to corrosion under repeated operation cycles.

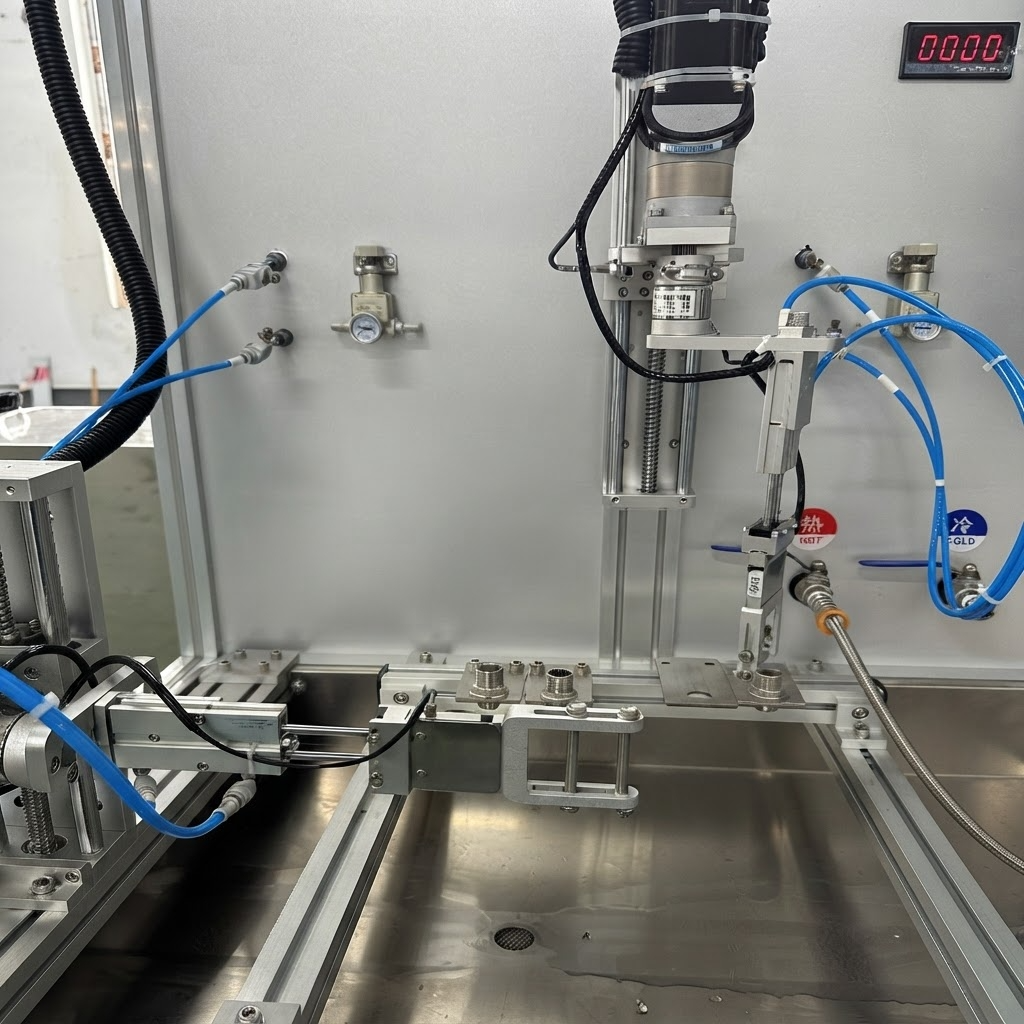

Modular Test Fixture System: Maximizing Versatility and Efficiency

One of the key innovations of the General Bathroom Hardware Life Cycle Testing Machine is its modular test fixture design. This system enables flexible combination of different test configurations, significantly improving machine utilization and testing efficiency.

• Interchangeable specimen holders: Quick-change fixtures accommodate different product sizes, shapes, and connection types.
• Adjustable mounting positions: Fixtures can be repositioned to test products of varying dimensions.
• Multi-station capability: Multiple test stations can be configured to test different product types simultaneously.
• Quick-connect water and air lines: Simplify specimen installation and changeover.

Compliance with International Standards

The General Bathroom Hardware Life Cycle Testing Machine is designed to meet the requirements of major international bathroom and plumbing standards, ensuring test results are globally recognized and accepted:

• EN 817: Mechanical mixers (single-lever) – General technical specifications and test methods.
• EN 1111: Thermostatic mixing valves – General technical specification.
• ASME A112.18.1 / CSA B125.1: Plumbing supply fittings – Performance requirements.
• GB/T 18145: Chinese national standard for sanitary taps.
• GB/T 23447: Chinese standard for shower systems.
• BS 5412: Specification for draw-off taps and combination taps.

Technical Specifications and Key Features

Modern bathroom hardware life cycle testers are equipped with advanced features to ensure precise, repeatable, and efficient testing.

• Test Frequency: Adjustable from 5 to 30 cycles per minute (or higher).
• Torque Measurement: High-precision torque sensor with 0.01Nm resolution.
• Flow Rate Measurement: Precision flow meter with ±1% accuracy.
• Pressure Monitoring: Pressure sensors for inlet and outlet pressure measurement (0–1.6MPa).
• Water Temperature Control: Optional temperature-controlled water supply for hot/cold cycling.
• Programmable Logic Controller (PLC): Touchscreen interface for test parameter setting, real-time monitoring, and data recording.
• Automatic Stop: Stops automatically when preset cycle count is reached or if abnormal conditions are detected.
• Data Export: USB/Ethernet ports for data export and report generation.

Benefits for Manufacturers and Testing Laboratories

Investing in a General Bathroom Hardware Life Cycle Testing Machine delivers significant operational and quality benefits:

• Comprehensive Product Coverage: Test all types of bathroom hardware with one versatile machine.
• High Efficiency: Modular fixtures and multi-station capability maximize throughput.
• Objective Data: Eliminate subjective judgments with precise torque, flow, and pressure measurements.
• Reduced Warranty Claims: Identify durability issues before products reach the market.
• Regulatory Compliance: Generate auditable test data for EN, ASME, and GB certification.
• Continuous Improvement: Use test data to optimize design, materials, and manufacturing processes.

Testing Workflow Overview

Using the General Bathroom Hardware Life Cycle Testing Machine follows a streamlined process:

1. Fixture Selection: Choose the appropriate specimen holder and mounting configuration.
2. Specimen Installation: Mount the bathroom hardware product (faucet, shower, valve, etc.) onto the test fixture.
3. Parameter Setting: Program test frequency, cycle count, torque limits, flow thresholds, and pressure parameters via the touchscreen interface.
4. Test Execution: Start the test; the machine automatically performs repeated opening and closing cycles while monitoring torque, flow, and pressure in real time.
5. Data Recording: The system records all test data, including torque trends, flow rate changes, and pressure variations.
6. Final Evaluation: After completing the target cycle count, inspect the specimen for wear, leakage, or functional degradation.
7. Report Generation: Generate a comprehensive test report documenting all parameters and results.

Conclusion: The Comprehensive Solution for Bathroom Hardware Durability Testing

The General Bathroom Hardware Life Cycle Testing Machine is the industry-standard solution for endurance testing of bathroom fittings. Its combination of modular test fixtures, precise torque, flow, and pressure monitoring, and compliance with international standards makes it an essential tool for manufacturers, quality control laboratories, and certification bodies. Whether you produce intelligent water nozzles, mixer taps, multi-function showers, drainage fittings, or angle valves, this versatile tester provides the objective, repeatable data needed to ensure product reliability, regulatory compliance, and customer satisfaction. Investing in this machine protects your brand reputation, reduces warranty claims, and delivers the durable, high-quality bathroom products that consumers demand.
