Water tank fittings are critical components of toilet flushing systems. Inlet valves and flush valves operate repeatedly during everyday use, so their durability directly affects the reliability, water-tightness, and service life of the complete flushing system.
A component that performs well during an initial functional test may still develop leakage, abnormal operation, deformation, or failure after thousands of operating cycles. For this reason, Water Tank Fittings Durability Testing is an important part of product development and quality control.

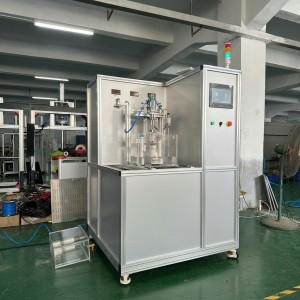

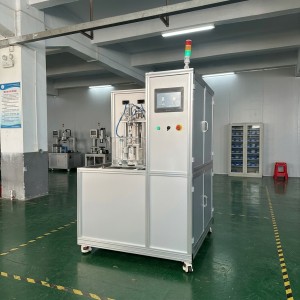

The Water Tank Fittings Durability Testing Machine is designed to simulate repeated operation of inlet and flush valves under controlled loading and water-pressure conditions.
What Is Water Tank Fittings Durability Testing?
Water tank fittings durability testing evaluates whether components such as inlet valves and flush valves can maintain their required performance after repeated operation.
The testing machine repeatedly operates the test component while controlling parameters such as:
- Operating force
- Water pressure
- Test cycles
- Actuator movement
- Water level
- Test duration
After the specified number of cycles, the component can be inspected for leakage, damage, deformation, sticking, or other abnormalities.
This type of testing is particularly important because toilet fittings are not single-use components. They may be operated thousands or hundreds of thousands of times throughout their service life.
Why Is Inlet Valve Life Testing Important?
The inlet valve controls the filling of the toilet tank after flushing. During normal operation, the valve repeatedly opens and closes as the water level changes.
Repeated operation can eventually cause problems such as:
- Water leakage
- Failure to shut off
- Abnormal filling
- Operating force changes
- Internal component wear
- Seal deterioration
The Inlet Valve Life Tester reproduces repeated operating conditions so manufacturers can evaluate the durability of the valve before production or market release.
According to GB/T 26730-2011, the durability of the fill valve is specifically addressed, and the standard requires the valve to be free from leakage or other failures after the durability test.
What Is Flush Valve Durability Testing?
The flush valve controls the discharge of water from the tank into the toilet bowl. Every flush represents an operating cycle, making durability testing particularly important.
A Flush Valve Durability Tester repeatedly activates the flush valve under controlled conditions. After completing the specified number of cycles, the valve can be inspected for:
- Leakage
- Failure to open
- Failure to close
- Abnormal operation
- Component deformation
- Seal damage
- Changes in operating force
GB/T 26730-2011 includes durability requirements for both fill valves and flush valves, with the durability test method specified in Appendix E.
How Does a Water Tank Fittings Durability Testing Machine Work?

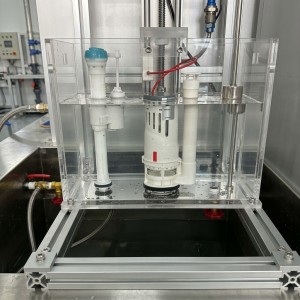

The Water Tank Fittings Durability Testing Machine connects the test valve to a controlled water supply and mechanical actuation system.
The operating sequence generally includes:
- Install the inlet or flush valve on the test fixture.
- Adjust the fixture according to the valve configuration.
- Set the required operating force.
- Set the required water pressure.
- Set the target number of cycles.
- Start the automatic test.
- Monitor operating force and water pressure in real time.
- Record the accumulated cycles.
- Automatically stop when the preset test cycles are reached.
- Inspect the specimen for leakage, damage, deformation, or abnormal operation.
The machine can provide static and dynamic pressure up to 1.0 MPa, with a loading-force range of 0–50 N.
Real-Time Operating Force and Pressure Monitoring
One important feature of a professional Toilet Valve Testing Machine is the ability to monitor operating conditions during the test.
The equipment provides adjustable upper and lower operating-force limits and can display the real-time operating force value and water supply pressure.
This allows operators to identify abnormal conditions during long-duration testing instead of waiting until the end of the test.
For example, an abnormal increase in operating force may indicate mechanical interference or component wear, while an unexpected pressure change may indicate a problem with the test system or specimen.
High-Cycle Durability Testing
To evaluate long-term reliability, durability testing often requires a large number of repeated operating cycles.
The machine supports a test range of 1 to 990,000 cycles, with a cycle-counting error of less than one cycle.
This high-capacity cycle counter makes the equipment suitable for extended life testing of toilet inlet and flush valves.
After reaching the preset cycle count, the machine can automatically stop, allowing the operator to perform a final inspection.
Constant-Pressure Water Supply and Water Recycling
Stable water pressure is essential for repeatable valve durability testing.
The machine provides a constant-pressure water supply system and allows the test water to be circulated and reused. This helps maintain consistent test conditions while reducing unnecessary water consumption.
The system also incorporates a 200 L water tank and liquid-level sensing.
If the water level becomes abnormal, the system can record the condition, provide an alarm, and stop the equipment when necessary.
Adjustable Fixtures for Different Valve Designs
Toilet fittings can have different structures and operating mechanisms. A fixed test fixture may therefore limit the range of products that can be tested.
The equipment uses adjustable fixtures that can move in multiple directions, making specimen installation more convenient.
The pneumatic cylinder has a movement range of 0–40 mm and supports four degrees of adjustment. The pressing position can also be adjusted to accommodate special configurations such as side-button flushing mechanisms.
The system can also accommodate flush valves with 2-inch and 3-inch installation requirements.
Post-Test Sealing Performance Evaluation
Durability testing and sealing performance are closely related.
After repeated operation, seals and internal components may experience wear that causes leakage. The equipment’s adjustable working pressure can therefore also be used for subsequent sealing evaluation after the life test.
This provides a more comprehensive way to assess whether the valve continues to maintain reliable sealing performance after repeated operation.
Applicable Standard: GB/T 26730-2011
The Water Tank Fittings Durability Testing Machine is designed around the relevant requirements of GB/T 26730-2011, Sanitary Ware – Gravity Water Flushing Devices and Supports.
The standard is currently listed as an existing Chinese national standard. It includes requirements and test methods for fill valves, flush valves, and flushing cistern durability.
The standard’s Appendix E provides the normative durability test method, while Section 6.16 specifies that the durability of the fill valve, flush valve, and flush tank is tested according to Appendix E.
For manufacturers targeting international markets, it is also useful to note that European standards such as EN 14055 include durability requirements for flushing cisterns and their components, including inlet and outlet valve-related testing.
The exact test procedure and applicable standard should always be confirmed according to the target market and product certification requirements.
Who Needs a Toilet Valve Durability Tester?
A Toilet Valve Durability Tester is useful for companies and laboratories involved in the development and production of:
- Toilet Inlet Valves
- Flush Valves
- Gravity Flush Systems
- Flushing Cisterns
- Toilet Tank Fittings
- Sanitary Ware
- Bathroom Hardware
Typical users include:
- Toilet Manufacturers
- Sanitary Ware Manufacturers
- Flush Valve Manufacturers
- Inlet Valve Manufacturers
- Plumbing Fitting Manufacturers
- Bathroom Hardware Manufacturers
- Quality Inspection Laboratories
- Certification Laboratories
- R&D Departments
- Universities and Research Institutes
Benefits of Automated Durability Testing
Compared with manual repeated operation, an automated Water Tank Fittings Life Testing Machine provides more consistent testing conditions.
The main benefits include:
Repeatability: The same operating parameters can be applied throughout the test.
Efficiency: Long-duration tests can run automatically without continuous manual operation.
Data Monitoring: Operating force, water pressure, and test cycles can be monitored during testing.
Safety: Abnormal water levels and other conditions can trigger alarms and automatic shutdown.
Flexible Testing: Adjustable fixtures and pressing positions allow different valve designs to be tested.
Reliable Evaluation: High-cycle testing helps reveal failures that may not appear during short-term functional tests.
Conclusion
The reliability of toilet water tank fittings depends not only on their initial performance but also on their ability to withstand repeated operation throughout their service life.
The Water Tank Fittings Durability Testing Machine provides a controlled solution for Inlet Valve Life Testing and Flush Valve Life Testing. With adjustable operating force, controlled water pressure, high-cycle testing, constant-pressure water circulation, flexible fixtures, liquid-level protection, and automatic cycle control, the machine can support comprehensive durability evaluation.
For toilet and sanitary ware manufacturers, incorporating automated Water Tank Fittings Durability Testing into product development and quality control can help identify valve failures earlier, improve product reliability, and provide stronger evidence for product performance and standards-based testing.
